Buy Phoenix Contact 2905872 IFS-BT-PROG-ADAPTER PLC adapter

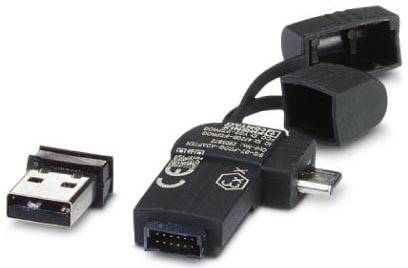

A USB adapter with multiple ports, including USB, micro-USB and another connector, is open and lying on a white surface.

Image similar

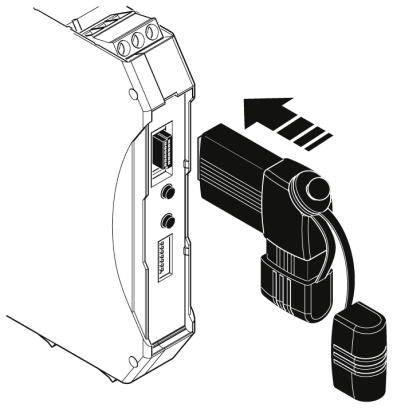

Instruction shows how a module is connected to a power cable. Connection points and cables are clearly highlighted.

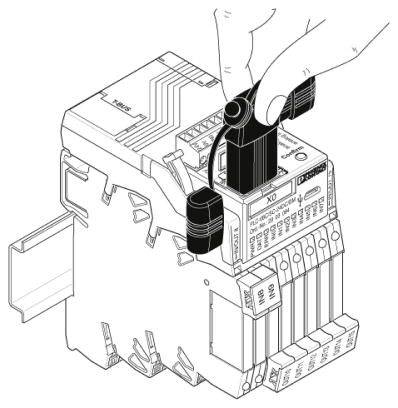

A hand pulls up a locking lever on an electrical switching device to install or remove a component.

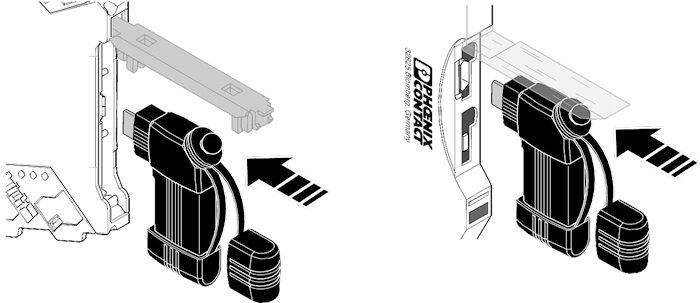

Diagram shows the installation of a lock on a computer rack. Two steps with arrows demonstrate the attachment.

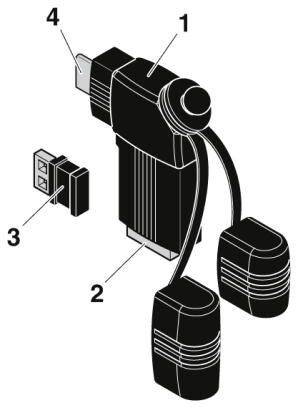

Black and white schematic diagram of a plug with numbers 1 to 4 indicating different parts. Two cables are connected.

1/5

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Ambient temperature (storage/transport): -25 °C - +70 °C.
Connection: Device side
Connection type: Micro USB type B, S-PORT
Input power< 600 mW
Material casing PA 646

Type: IFS-BT-PROG-ADAPTER

Product type: PLC adapter

Manufacturer part #: 2905872

Dim: (L x W x H) 9.6 x 38 x 30.6 mm

Width: 38 mm

Height: 30.6 mm

Length: 9.6 mm

Max. ambient temperature: +65 °C

Min. ambient temperature: -25 °C

: Adapter plate

: TRUE

: FALSE

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2225647 Phoenix Contact 2905872 IFS-BT-PROG-ADAPTER PLC adapter

User & Safety Instructions

User & Safety Instructions 2225647 Phoenix Contact 2905872 IFS-BT-PROG-ADAPTER PLC adapter

Description

Bluetooth adapter with micro-USB and S-PORT interface for wireless communication with the device series MINI Analogue, MINI Analogue Pro, MACX Analogue, INTERFACE System Gateways and PLC logic.

This text is machine translated.
