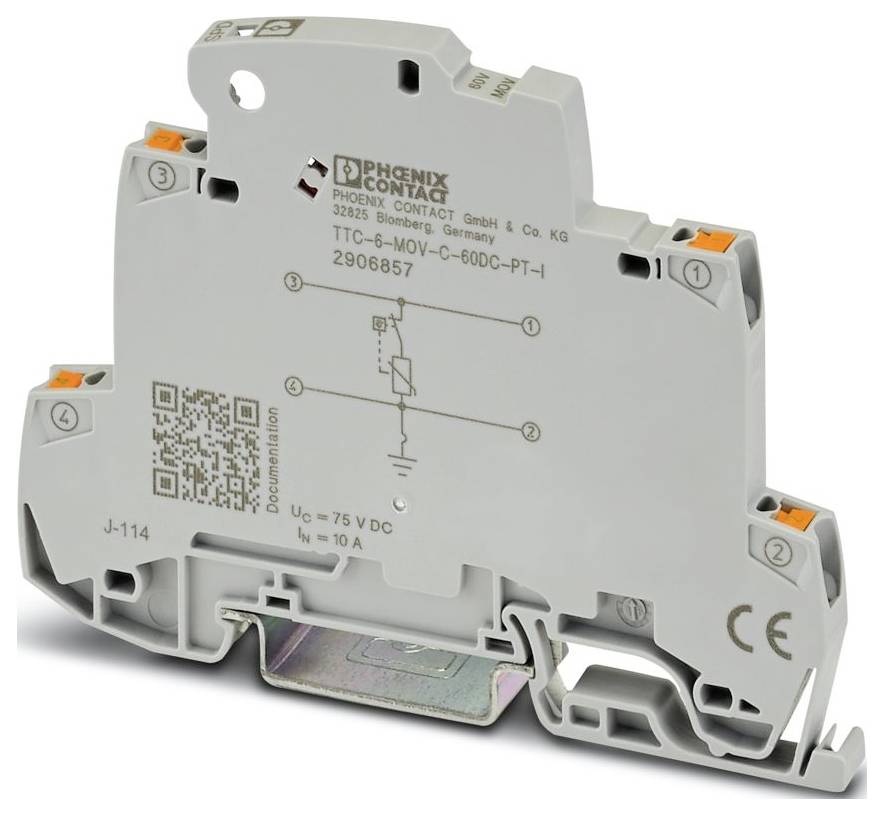

Phoenix Contact 2906857 TTC-6-MOV-C-60DC-PT-I Surge protection device 2 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product family: TERMITRAB complete
- IEC TEST CLASS C1;C2;C3
- Designed: Single piece mounting rail module
- Message Surge Protection Faulty: Optical
- NOMINAL VOLTAGE 60 V DC
- Push-in connection
- Conductor cross-section flexible: 0.2 mm² ... 2.5 mm².
- Conductor cross-section rigid: 0.2 mm² ... 4 mm².
- Wire cross-section AWG: 24 ... 12
- Width 6.2 mm
- Height: 92 mm
- Depth: 69.5 mm (including mounting rail 7.5 mm)
- Colour: Grey (RAL 7042)
- Flammability class according to UL 94 V-0
- Material: housing: PBT
- Mechanical Data: Mechanical Data
- Open side wall: Yes
- Direction of effect: Line-Earth Ground
- Maximum continuous voltage UC: 75 V DC;53 V AC
- Rated current 10 A (60 °C)
- Operating current IC at UC ≤ 100 µA
- Earth current IPE ≤ 100 µA
- Protection level Up (wire-earth): ≤ 200 V (C1 - 600 A);≤ 270 V (C2 - 4 kV);≤ 190 V (C3 - 25 A);≤ 200 V (C3 - 35 A)
- Capacity (wire-ground) 5 nF
- Resistance per path: ≤ 100 mΩ
- Surge current (Wire-Earth) C1 - 600 A; C2 - 2 kA; C3 - 35 A
- Ambient conditions: Environmental conditions
- IP20 (with end cover)
- Ambient temperature (operation): -40 °C ... 85 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Altitude: ≤ 4000 m (amsl)
- Standards/regulations EN 61643-21
- Note:2001 + A1:2009 + A2:2013
- Mounting type: Rail: 35 mm
- Insulation properties: Insulation properties
- Over voltage category III
- Pollution level: 2
- Insulating material PBT
- Permissible air humidity (operation): 5 % ... 95 %.
- Nominal impulse surge current In (8/20) µs (wire-ground): 2 kA
- Response time TA (wire-earth): ≤ 25 ns
- AE Insertion loss, unbalanced: Type 0.3 dB (≤ 200 kHz / 150 Ω)
- EN 61643-21, EN 61643-21
- Cut-off frequency FG (3 dB), unbalanced (PE) in 150 Ω system: Type. 650 kHz
- Product type
Surge protection device
- Leakage current
2 kA
- Type
Support rail module one piece
IP20
- Manufacturer part #
2906857
- Dim
(W x H x D) 6.2 x 92 x 69.5 mm
- Width
6.2 mm
- Height
92 mm
- Depth
69.5 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3579959 Phoenix Contact 2906857 TTC-6-MOV-C-60DC-PT-I Surge protection device 2 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3579959 Phoenix Contact 2906857 TTC-6-MOV-C-60DC-PT-I Surge protection device 2 kA 1 pc(s)
Description
Overvoltage protection with integrated status display for a signal wire with earthed reference potential. Can be used in safety-related circuits up to SIL 3.
