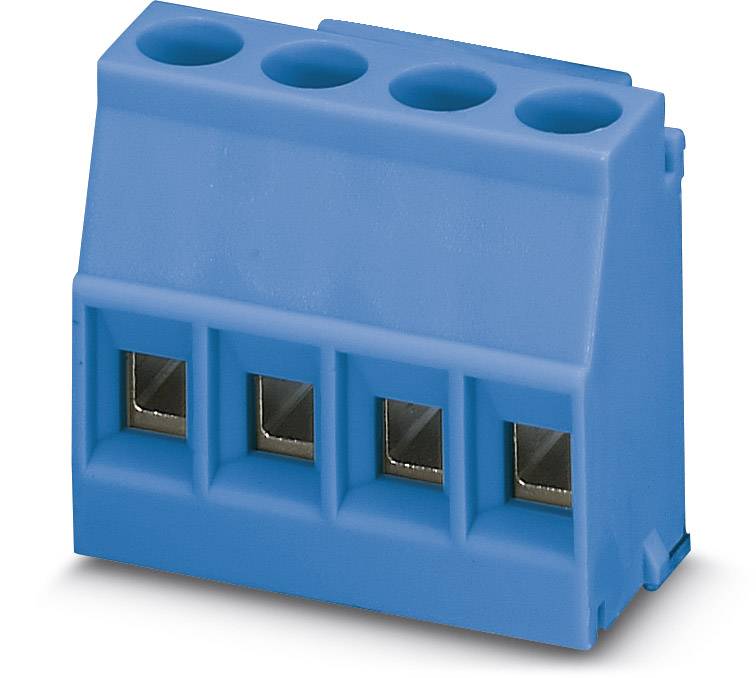

Phoenix Contact 2908032 Screw terminal 2.50 mm² Number of pins 4 Blue 50 pc(s) Package
EAN:
Part number:
Item no:
Packaging type
Package
Product type
Screw terminal
Pins per row
4
Number of pins
4
Connection
Screw terminal
Print
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 3.03 / piece)
€ 151.25
plus VAT.
Only 7 Set(s) available
Highlights & Details
PCB terminal block MKDSO 2,5/ 4-L BU
- Content 50 pc(s)
Technical specifications
- Packaging type
Package
- Type
MKDSO 2,5/ 4-L BU
- Product type
Screw terminal
- Features
+ extractor sleeve
- Pins per row
4
- Number of pins
4
- Series
MKDSO
- Stripping length (max.)
8.00 mm
- Connection
Screw terminal
Print
- Nominal current
24 A
- Cross section (flexible) (min.)
0.14 mm²
- Nominal current - rounded value
24 A
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
26
- Connector orientation
Parallel (to the PCB)
- AWG max.
14
- Factory colour
Blue
- Actuation direction
Perpendicular (to the PCB)
- Manufacturer part #
2908032
- Industrial packaging
Yes
- Content
50 pc(s)
- Nominal voltage
400 V
- Width
21.25 mm
- Height
19.95 mm
- Length
15.30 mm
Documents & Downloads
Datasheet
Datasheet 569123 Phoenix Contact 2908032 Screw terminal 2.50 mm² Number of pins 4 Blue 50 pc(s) Package
User & Safety Instructions
User & Safety Instructions 569123 Phoenix Contact 2908032 Screw terminal 2.50 mm² Number of pins 4 Blue 50 pc(s) Package
Description
PCB terminal block, Nominal current: 24 A, Nom. voltage: 400 V, Connection method: Screw connection, Mounting: Soldering, Conductor/PCB connection direction: 0 °, Color: blue
