Buy Phoenix Contact 2909575 Rail mounted PSU (DIN) 24 V 1.3 A 30 W Content 1 pc(s)

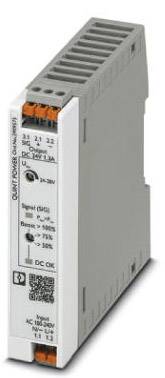

A grey, rectangular electrical module with voltage and signal details on the front face, used for current regulation in industrial applications.

Image similar

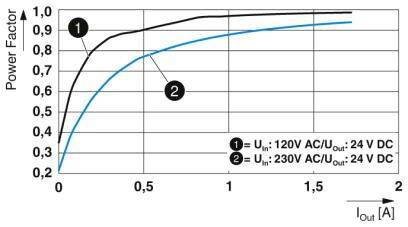

Graph shows power factor against output current. Two curves, 120V AC and 230V AC, rise to near 1 at 2A.

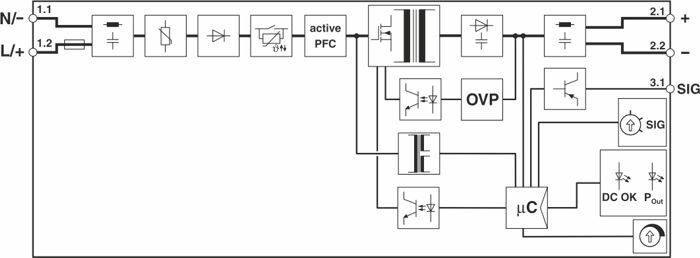

'Circuit diagram of an electronic device with components such as rectifier, active PFC, OVP and microcontroller. Connections to DC OK and SIG.'

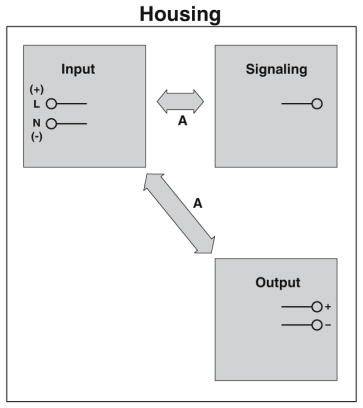

'Diagram shows circuits: Input, Signaling, Output in housing. Input: '+' 'L', 'N', '-'. Output: 'O' '+' '-'. Arrows indicate flow from Input to Signaling and Output.'

Phoenix Contact 2909575 Rail mounted PSU (DIN) 24 V 1.3 A 30 W Content 1 pc(s)-4

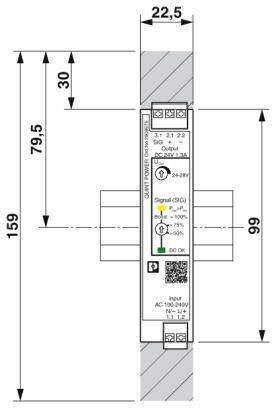

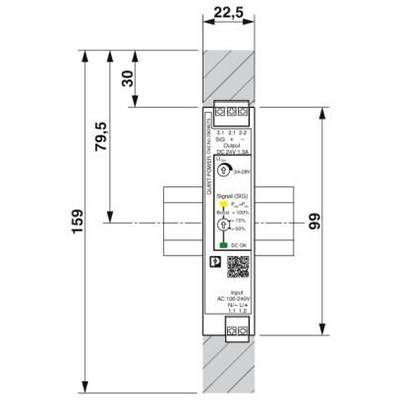

Illustration of a DIN rail-mounted device with dimensions 159 mm x 22.5 mm. Includes connections for signal, DC, and AC input.

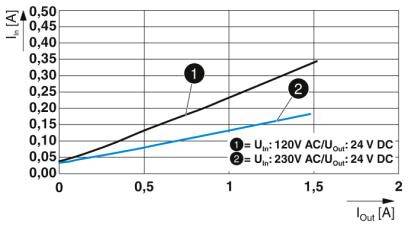

'Diagram shows current In [A] against Iout [A]: 1) 120V AC/24V DC (rising line), 2) 230V AC/24V DC (steeper line).'

1/7

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Withstand voltage 300 V/AC 30 s.
Wire stripping length: 10 mm
CURRENT CONSUMPTION 0.46 A (100 V/AC), 0.37 A (120 V/AC), 0.2 A (230 V/AC), 0.2 A (240 V/AC)
Nominal power consumption 37 VA

Type: Carry rail mounting

Nominal input voltage: 100 - 240 V/AC

Product type: Rail mounted PSU (DIN)

Min. input voltage: 100 V AC

Output voltage: 24 V DC

Input voltage: 100 V/AC - 240 V AC

Input voltage (max.): 240 V AC

Max. output current: 1.3 A

Output current (max.) - rounded: 1.3 A

: 30 W

Output type (power supply units): Adjustable

Phases: 1

Output voltage (nominal): 24 V

Connection: Push-in connector

Dim: (L x W x H) 90 x 22.5 x 106 mm

Weight: 0.188 kg

Output voltage (max.): 24 V DC

Output voltage (min.): 24 V

Operating temperature (max.): +70 °C

Min. operating temperature (derating): +60 °C

Operating temperature (min.): -25 °C

Manufacturer part #: 2909575

Content: 1 pc(s)

MTBF: 1904000 h

PSU features: Regulated

Width: 22.5 mm

Height: 106 mm

Length: 90 mm

: IP20

Max. temperature: +85 °C

Min. temperature: -40 °C

Type: QUINT4-PS/1AC/24DC/1.3/PT

Efficiency: 90.7 %

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Power

Connection

Input voltage (max.)

Output voltage (nominal)

Output voltage

Output type (power supply units)

Nominal input voltage

Output current (max.) - rounded

Min. input voltage

Phoenix Contact 2904605 Rail mounted PSU (DIN) 12 V DC 2.5 A 30 W No. of outputs:1 x Content 1 pc(s)

Item no:2140951

30 W

Push-in connector

240 V AC

12 V DC

Adjustable

100 - 240 V/AC

2.5 A

100 V AC

Phoenix Contact 2904598 Rail mounted PSU (DIN) 24 V 2.5 A 60 W Content 1 pc(s)

Item no:2140988

60 W

Screws

240 V AC

24 V

24 V DC

Adjustable

100-240 V/AC

2.5 A

100 V AC

Phoenix Contact 2902995 Rail mounted PSU (DIN) Consumption (standby) 0.3 W 48 V 1.25 A 60 W Content 1 pc(s)

Item no:2140996

60 W

Screws

264 V AC

48 V

48 V DC

Fixed voltage

100-240 V/AC

1.25 A

85 V AC

Phoenix Contact 2904371 Rail mounted PSU (DIN) Consumption (standby) 0.3 W 24 V 3.75 A 90 W Content 1 pc(s)

Item no:2141009

90 W

Screws

575 V AC

24 V

24 V DC

Fixed voltage

400 - 500 V/AC

3.75 A

264 V AC

Phoenix Contact 2904608 Rail mounted PSU (DIN) 12 V 15 A 180 W Content 1 pc(s)

Item no:2141010

180 W

Screws

240 V AC

12 V

12 V DC

Adjustable

100-240 V/AC

15 A

100 V AC

Phoenix Contact 2904610 Rail mounted PSU (DIN) 5 A 240 W Content 1 pc(s)

Item no:2141011

240 W

Screws

240 V AC

48 V DC

Adjustable

100-240 V/AC

5 A

100 V AC

Phoenix Contact 2904597 Rail mounted PSU (DIN) 24 V 1.3 A 30 W Content 1 pc(s)

Item no:2141025

30 W

Screws

240 V AC

24 V

24 V DC

Adjustable

100-240 V/AC

1.3 A

100 V AC

Phoenix Contact 2904607 Rail mounted PSU (DIN) 12 V DC 7.5 A 90 W No. of outputs:1 x Content 1 pc(s)

Item no:2141026

90 W

Push-in connector

240 V AC

12 V DC

Adjustable

AC 100 V - 240 V; DC 140 V - 300 V

7.5 A

100 V AC

Phoenix Contact 2903159 Rail mounted PSU (DIN) 5 A 240 W Content 1 pc(s)

Item no:2141033

240 W

Push-in connector

240 V AC

48 V DC

Adjustable

100-240 V/AC

5 A

100 V AC

Phoenix Contact 2904599 Rail mounted PSU (DIN) 24 V 3.8 A 90 W Content 1 pc(s)

Item no:2141035

90 W

Screws

240 V AC

24 V

24 V DC

Adjustable

100-240 V/AC

3.8 A

100 V AC

Documents & Downloads

Datasheet

Datasheet 2140967 Phoenix Contact 2909575 Rail mounted PSU (DIN) 24 V 1.3 A 30 W Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2140967 Phoenix Contact 2909575 Rail mounted PSU (DIN) 24 V 1.3 A 30 W Content 1 pc(s)

Description

Start heavy loads with dynamic boost. Preventive function monitoring reports critical operating states before errors occur. Space saving in the control cabinet through slim and flat design.

This text is machine translated.
