Name: Phoenix Contact 2909576 Rail mounted PSU (DIN) 24 V 2.5 A 60 W Content 1 pc(s)
Brand: Phoenix Contact
SKU: 2141050

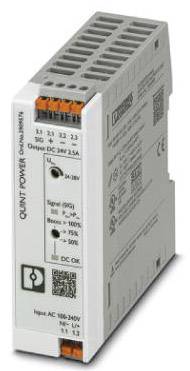

Electronic component 'QUINT POWER', a power supply unit by Phoenix Contact, shows inputs and outputs on the left and technical specifications on the right.

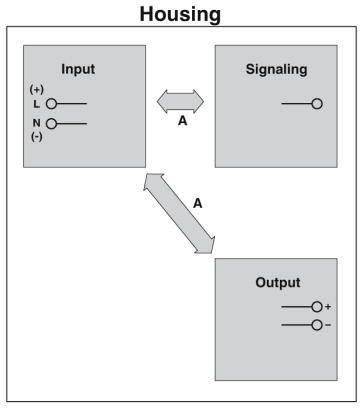

Circuit diagram with three components: 'Input' with L, N, (-), 'Signalling' with a point, and 'Output' with +, -. Two arrows indicate connections.

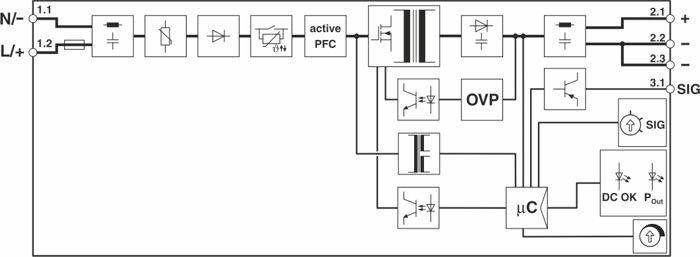

'Circuit diagram of a power supply with active power factor correction (PFC), overvoltage protection (OVP) and microcontroller (µC).'

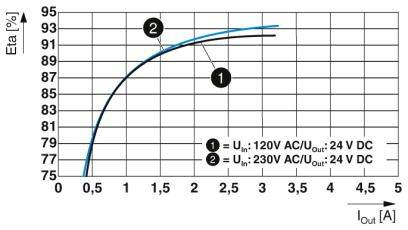

The diagram shows the efficiency curve of a power supply. X-axis: Output current 'I_out [A]'. Y-axis: Efficiency 'Eta [%]'. Two curves, 1: U_in 120V, 2: U_in 230V.

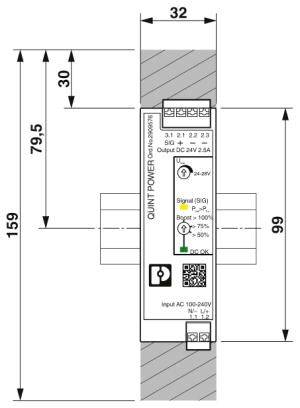

A switch-mode power supply module measuring 32 x 159 mm, input AC 100-240V, output DC 24V 2.5A, mounted in an enclosure.

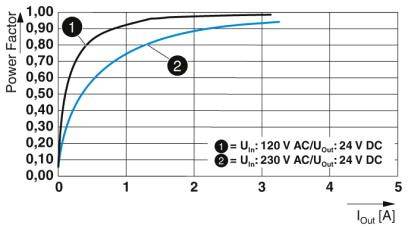

Graph showing the power factor as a function of output current (Iout in A). Comparison of 120V (Line 1) and 230V (Line 2) input voltage.

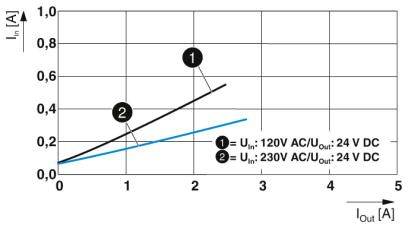

The diagram shows two line progressions on an I-in versus I-out diagram. Line 1: 120V AC, Line 2: 230V AC, both at 24V DC output.

1/7

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Withstand voltage 300 V/AC 30 s.
Wire stripping length: 10 mm
CURRENT CONSUMPTION 0.85 A (100 V/AC), 0.7 A (120 V/AC), 0.39 A (230 V/AC), 0.37 A (240 V/AC)
Rated power consumption 71 VA

Type: Carry rail mounting

Nominal input voltage: AC 100-240V

Product type: Rail mounted PSU (DIN)

Min. input voltage: 100 V AC

Output voltage: 24 V DC

Input voltage: 100 V/AC - 240 V AC

Input voltage (max.): 240 V AC

Max. output current: 2.5 A

Output current (max.) - rounded: 2.5 A

: 60 W

Output type (power supply units): Adjustable

Phases: 1

Output voltage (nominal): 24 V

Connection: Push-in connector

Dim: (L x W x H) 90 x 32 x 106 mm

Weight: 0.244 kg

Output voltage (max.): 24 V DC

Output voltage (min.): 24 V

Operating temperature (max.): +70 °C

Min. operating temperature (derating): +60 °C

Operating temperature (min.): -25 °C

Manufacturer part #: 2909576

Content: 1 pc(s)

MTBF: 1347000 h

PSU features: Adjustable voltage output

Width: 32 mm

Height: 106 mm

Length: 90 mm

: IP20

Max. temperature: +85 °C

Min. temperature: -40 °C

Type: QUINT4-PS/1AC/24DC/2.5/PT

Efficiency: 92.6 %

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Power

Connection

Input voltage (max.)

Output voltage (nominal)

Output voltage

Output type (power supply units)

Nominal input voltage

Output current (max.) - rounded

Min. input voltage

Phoenix Contact 2320911 Rail mounted PSU (DIN) 24 V 10 A 240 W Content 1 pc(s)

Item no:2209722

Dispatches on Thu 22 Oct

Conrad Electronic

240 W

Push-fit screw connector

264 V AC

24 V

24 V DC

Adjustable

100-240 V/AC

10 A

85 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 445.00^*

Phoenix Contact 2902646 Rail mounted PSU (DIN) 10 A 50 W Content 1 pc(s)

Item no:2225461

Unavailable

Conrad Electronic

50 W

Screws

264 V AC

5 V DC

100-240 V/AC

10 A

85 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2902994 Rail mounted PSU (DIN) Consumption (standby) 0.3 W 24 V 3.75 A 90 W Content 1 pc(s)

Item no:2225477

Unavailable

Conrad Electronic

90 W

Screws

264 V AC

24 V

24 V DC

Fixed voltage

100-240 V/AC

3.75 A

85 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2902995 Rail mounted PSU (DIN) Consumption (standby) 0.3 W 48 V 1.25 A 60 W Content 1 pc(s)

Item no:2140996

Unavailable

Conrad Electronic

60 W

Screws

264 V AC

48 V

48 V DC

Fixed voltage

100-240 V/AC

1.25 A

85 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2903002 Rail mounted PSU (DIN) Consumption (standby) 0.3 W 15 V 6.67 A 100 W Content 1 pc(s)

Item no:2141057

Unavailable

Conrad Electronic

100 W

Screws

264 V AC

15 V

15 V DC

Fixed voltage

100-240 V/AC

6.67 A

85 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2903144 Rail mounted PSU (DIN) 24 V 5 A 120 W Content 1 pc(s)

Item no:2225478

Unavailable

Conrad Electronic

120 W

Push-in connector

240 V AC

24 V

24 V DC

Adjustable

100-240 V/AC

5 A

100 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2903145 Rail mounted PSU (DIN) 24 V 10 A 240 W Content 1 pc(s)

Item no:2225479

Unavailable

Conrad Electronic

240 W

Push-in connector

240 V AC

24 V

24 V DC

Adjustable

100-240 V/AC

10 A

100 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2903147 Rail mounted PSU (DIN) 24 V 3 A 72 W Content 1 pc(s)

Item no:2225480

Unavailable

Conrad Electronic

72 W

Push-in connector

240 V AC

24 V

24 V DC

Adjustable

100-240 V/AC

3 A

100 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2903156 Rail mounted PSU (DIN) 40 A 960 W Content 1 pc(s)

Item no:2225481

Unavailable

Conrad Electronic

960 W

Push-in connector

500 V AC

24 V DC

Adjustable

400 - 500 V/AC

40 A

400 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2903157 Rail mounted PSU (DIN) 12 V 5 A 60 W Content 1 pc(s)

Item no:2225482

Unavailable

Conrad Electronic

60 W

Push-in connector

240 V AC

12 V

12 V DC

Adjustable

100-240 V/AC

5 A

100 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 2141050 Phoenix Contact 2909576 Rail mounted PSU (DIN) 24 V 2.5 A 60 W Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2141050 Phoenix Contact 2909576 Rail mounted PSU (DIN) 24 V 2.5 A 60 W Content 1 pc(s)

Description

Start heavy loads with dynamic boost. Preventive function monitoring reports critical operating states before errors occur. Space saving in the control cabinet through slim and flat design.

This text is machine translated.

Technical specifications

Variants(All information is without VAT, plus shipping costs)

Documents & Downloads

Datasheet

User & Safety Instructions

Description

Description

What kind of DIN Rail PSUs are you looking for?
