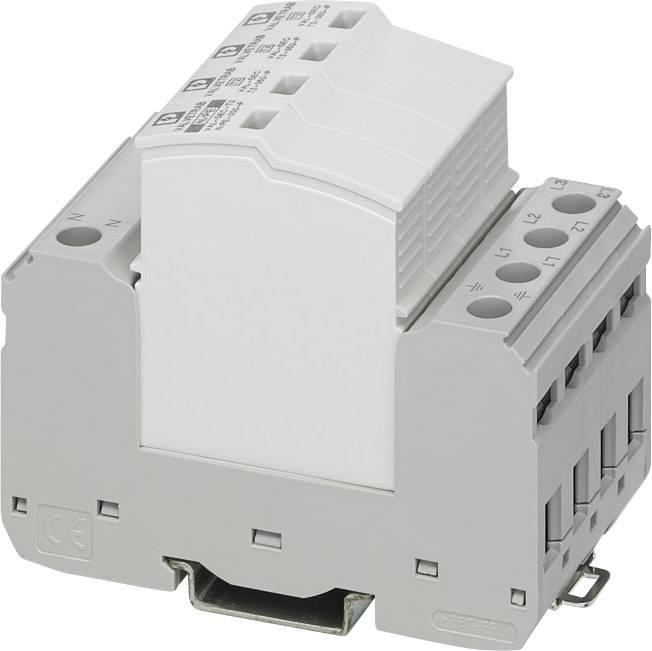

Phoenix Contact 2909637 VAL-SEC-T2-3S-350/40 Switchboard surge protection Surge protection for: Switchboards 40 kA 1 pc(
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Surge suppressor type 2
- Pluggable surge arrester according to type 2/Class II
- For 3-phase power supply networks with separate N and PE (5-conductor system L1, L2, L3, N, PE)
- For plants with increased need for security
Technical specifications
- Product type
Switchboard surge protection
- Surge protection for
Switchboards
- Leakage current
40 kA
- Nominal voltage
240 V AC
- Pick-up time (details)
25 ns
- Operating temperature
-40°C ... 80 °C
IP20
- Manufacturer part #
2909637
- Type
T2
- Factory colour
Grey-white (RAL 7035)
Traffic gey (RAL 7042)
- Standards
IEC 61643 2011 | EN 61643 2012
- Dim
(W x H x D) 49.2 x 89.9 x 74.5 mm
- Width
49.2 mm
- Height
89.9 mm
- Depth
74.5 mm
- Content
1 pc(s)
- Weight
368.23
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1573933 Phoenix Contact 2909637 VAL-SEC-T2-3S-350/40 Switchboard surge protection Surge protection for: Switchboards 40 kA 1 pc(
User & Safety Instructions
User & Safety Instructions 1573933 Phoenix Contact 2909637 VAL-SEC-T2-3S-350/40 Switchboard surge protection Surge protection for: Switchboards 40 kA 1 pc(
Description
Plug-in lightning current and surge arrester (type 1+2/Class I + II) comprising of safety plugs and base element for the rail mounting. Protective circuit for 3-phase power supply networks, with combined mislaid N and PE in a conductor (5-conductor system L1, L2, L3, N, PE). Facilities: encapsulated radio links with ignition mechanism for triggering the response voltage. Directly connected in parallel Varistors. Additional plug-in total current spark gap between N and PE. Function monitoring for Class I and Class II - conductor. Cut-off of the individual L-N-protection paths in case of failure. Operating current-free (mechanical) visual fault reporting and remote defect message in the L-N-paths for Class I and Class II arrester on a common potential-free changeover contact.
Base element connection Variable mountable (outer conductor from above or below). Protection plug can be rotated by 180° in the base element plug (plug-in label be read). Fuse against false mounting with wrong plugs by mechanical coding of a base element and plug. Labelling option for protective plugs and terminals. Biconnect-terminals for connection of round conductors and wiring bridges.
This text is machine translated.
Base element connection Variable mountable (outer conductor from above or below). Protection plug can be rotated by 180° in the base element plug (plug-in label be read). Fuse against false mounting with wrong plugs by mechanical coding of a base element and plug. Labelling option for protective plugs and terminals. Biconnect-terminals for connection of round conductors and wiring bridges.
This text is machine translated.
