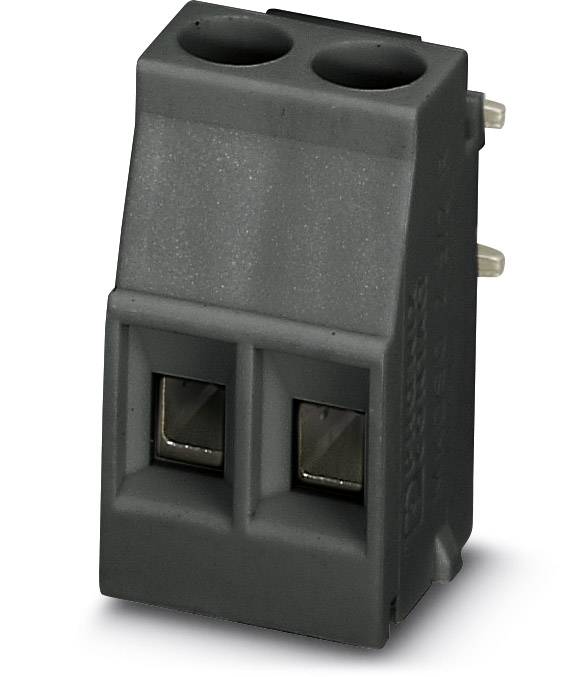

Phoenix Contact 2909785 Screw terminal 2.50 mm² Number of pins 2 Black 200 pc(s)
EAN:
Part number:
Item no:
Product type
Screw terminal
CS
5 mm
Pins per row
2
Number of pins
2
Connection
Screw terminal
Print
Datasheet (PDF)
Number (Package size 200 pc(s))
Total (€ 1.38 / piece)
€ 276.47
plus VAT.
Only 1 Set(s) available
Highlights & Details
PCB terminal block MKDSO 2,5/ 2-R BK VPE200
- MKDSO 2.5/ 2-R BK VPE 200
- 200 pieces/bag
Technical specifications
- Type
MKDSO 2,5/ 2-R BK VPE200
- Product type
Screw terminal
- Features
+ extractor sleeve
- CS
5 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Series
MKDSO
- Stripping length (max.)
8.00 mm
- Connection
Screw terminal
Print
- Nominal current
24 A
- Cross section (flexible) (min.)
0.14 mm²
- Nominal current - rounded value
24 A
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
26
- Connector orientation
Parallel (to the PCB)
- AWG max.
14
- Contact material
Cathode copper, tin plated
- Enclosure material
Polyamide
- Factory colour
Black
- Actuation direction
Perpendicular (to the PCB)
- Manufacturer part #
2909785
- Industrial packaging
Yes
- Content
200 pc(s)
- Nominal voltage
400 V
- Width
17.05 mm
- Height
15.30 mm
- Length
9.95 mm
- Connector system
wire-to-board
- Series
MKDSO
Documents & Downloads
Datasheet
Datasheet 568085 Phoenix Contact 2909785 Screw terminal 2.50 mm² Number of pins 2 Black 200 pc(s)
User & Safety Instructions
User & Safety Instructions 568085 Phoenix Contact 2909785 Screw terminal 2.50 mm² Number of pins 2 Black 200 pc(s)
Description
PCB terminal block, Nominal current: 24 A, Nom. voltage: 400 V, Connection method: Screw connection, Mounting: Soldering, Conductor/PCB connection direction: 0 °, Color: black
