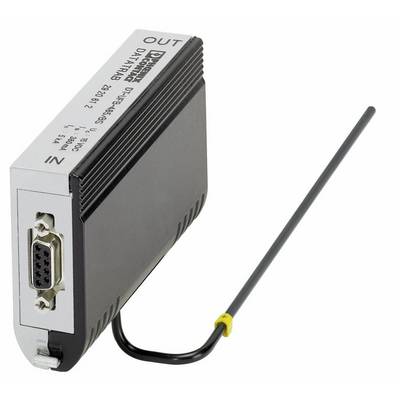

Phoenix Contact 2920612 DT-UFB-485/BS Surge protection in-line connector Surge protection for: BUS (RS485) 5 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 134.45 / piece)
€ 134.45
plus VAT.
14-day return policy included
Highlights & Details
RS-485 adapter plug
- Leakage current 5 kA
Technical specifications
- Insertion loss: 0.5 dB
- Standard IEC 61643-2
- Product type
Surge protection in-line connector
- Surge protection for
BUS (RS485)
- Leakage current
5 kA
- Pick-up time (details)
≤ 100 n s
IP20
- Manufacturer part #
2920612
- Factory colour
Black
Grey
- Dim
(L x W x H) 110 x 26 x 63 mm
- Length
110 mm
- Width
26 mm
- Height
63 mm
- Content
1 pc(s)
- Leakage current
5 kA
- Nominal current (details)
≤ 380 mA (25 °C)
- Operating voltage
12 V DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 615103 Phoenix Contact 2920612 DT-UFB-485/BS Surge protection in-line connector Surge protection for: BUS (RS485) 5 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 615103 Phoenix Contact 2920612 DT-UFB-485/BS Surge protection in-line connector Surge protection for: BUS (RS485) 5 kA 1 pc(s)
Description
This adapter provides protection for your RS485 interface in the form of an adapter. The connection of the protection device is made system compatible over 9-pin D SUB plug connectors. By removing a filler cap, the protective device designed for control cabinets can attached on a DIN rail.
