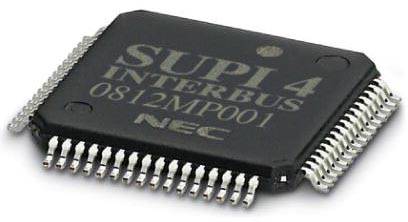

Phoenix Contact 2988117 IBS SUPI 4 TQFP Slave protocol chip
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Ambient temperature (operation): -40 °C ... 85 °C (at max. 75% humidity in operation)
- Ambient temperature (storage/transport): -65 °C ... 150 °C (at max. 60 %)
- Interface: Interbus
- Connection type: Remote bus, peripheral bus or remote installation bus
- User interface: MFP interface, digital I/O (16 IN/16 OUT, 32 IN, 32 OUT), parallel and serial port for microprocessor
- Typical current consumption 20 mA
- IC SUPPLY VOLTAGE 3.3 VDC ±10% (DC)
- Internal data length: 64 bytes IN / 64 bytes OUT
- Design: TQFP 64
- Product type
Slave protocol chip
- Type
IBS SUPI 4 TQFP
- Height
1 mm
- Length
10 mm
- Width
10 mm
- Dim
(L x W x H) 10 x 10 x 1 mm
- Manufacturer part #
2988117
- Content
160 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2225825 Phoenix Contact 2988117 IBS SUPI 4 TQFP Slave protocol chip
Datasheet 2225825 Phoenix Contact 2988117 IBS SUPI 4 TQFP Slave protocol chip
User & Safety Instructions
User & Safety Instructions 2225825 Phoenix Contact 2988117 IBS SUPI 4 TQFP Slave protocol chip
Description
Interbus slave protocol chip
