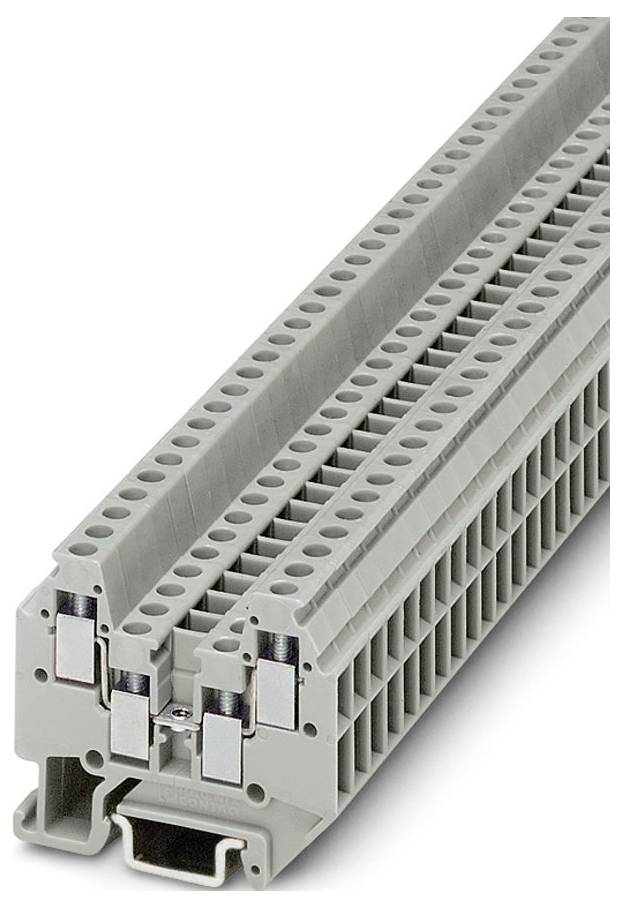

Phoenix Contact 3001679 Micro terminal Grey 50 pc(s)
EAN:
Part number:
Item no:
Product type
Micro terminal
Cross section (flexible) (max.)
1.5 mm²
Cross section (inflexible) (max.)
1.5 mm²
Nominal current - rounded value
17.5 A
Content
50 pc(s)
Datasheet (PDF)
Highlights & Details
- MT 1,5-QUATTRO
Technical specifications
- Product type
Micro terminal
- Features
built-in jumper
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- No. of rows
2
- Factory colour
Grey
- Nominal current
17.5 A
- Nominal current - rounded value
17.5 A
- Nominal voltage
400 V
- Manufacturer part #
3001679
- Content
50 pc(s)
- Type
MT 1,5-QUATTRO
- Dim
(W x H x D) 4.2 x 33.5 x 30 mm
- Width
4.2 mm
- Height
33.5 mm
- Flammability rating
V0
- Depth
30 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3580565 Phoenix Contact 3001679 Micro terminal Grey 50 pc(s)
User & Safety Instructions
User & Safety Instructions 3580565 Phoenix Contact 3001679 Micro terminal Grey 50 pc(s)
