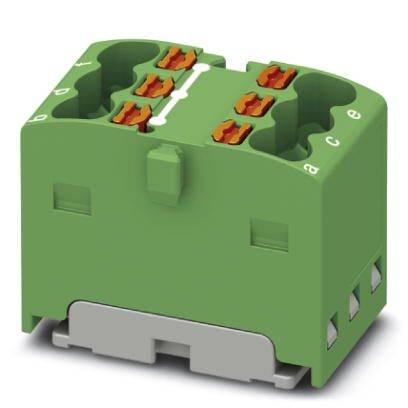

Phoenix Contact 3002771 Green 20 pc(s)
EAN:
Part number:
Item no:
Factory colour
Green
AWG max.
14
Stripping length
8 mm
Stripping length (max.)
10 mm
Dim
(L x W) 21.6 mm x 12.5 mm
Datasheet (PDF)
Technical specifications
- Flammability class according to UL 94: V0
- Width 12.5 mm
- Number of floors: 1

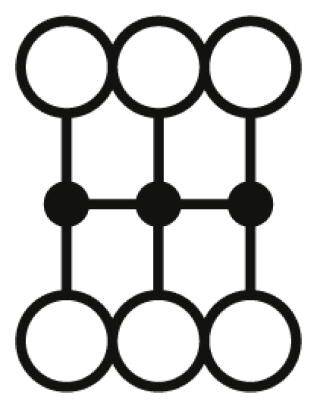

- Number of ports: 6
- Potential: 1
- Insulating material: PA
- Dimensioning surge voltage: 6 kV
- Pollution level 3
- Over voltage category III
- Insulating material group: I
- Maximum power loss at rated condition: 0.56 W.
- Maximum load current 22 A.
- Open side wall: No.
- Total current max. 26 A.
- Factory colour
Green
- AWG max.
14
- Stripping length
8 mm
- Stripping length (max.)
10 mm
- Dim
(L x W) 21.6 mm x 12.5 mm
- Connection

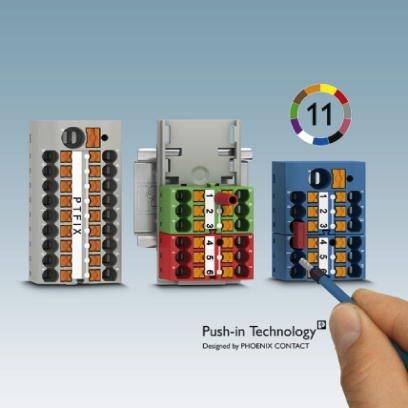

Push-in connector
- Connector colour
Green
- Manufacturer part #
3002771
- Content
20 pc(s)
- Clamp width
12.5 mm
- Material
PA
- Nominal voltage
450 V
- Nominal current
17.5 A
- Nominal current - rounded value
17.5 A
- Width
12.5 mm
- Length
21.6 mm
- Type
PTFIX 6X1,5 GN
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2225840 Phoenix Contact 3002771 Green 20 pc(s)
Datasheet 2225840 Phoenix Contact 3002771 Green 20 pc(s)
User & Safety Instructions
User & Safety Instructions 2225840 Phoenix Contact 3002771 Green 20 pc(s)
Description

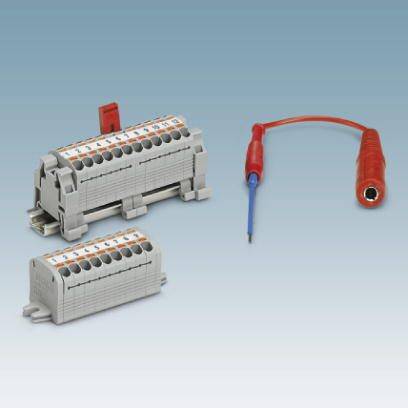

Space-saving thanks to compact design. Flexible use through direct mounting with flange covers made of accessories. Space-saving potential distribution through compact micro potential distributor. Ideal testing possibilities through test openings at each clamping point. Clear thanks to the labeling of all clamping points.
