Image similar
Image similar

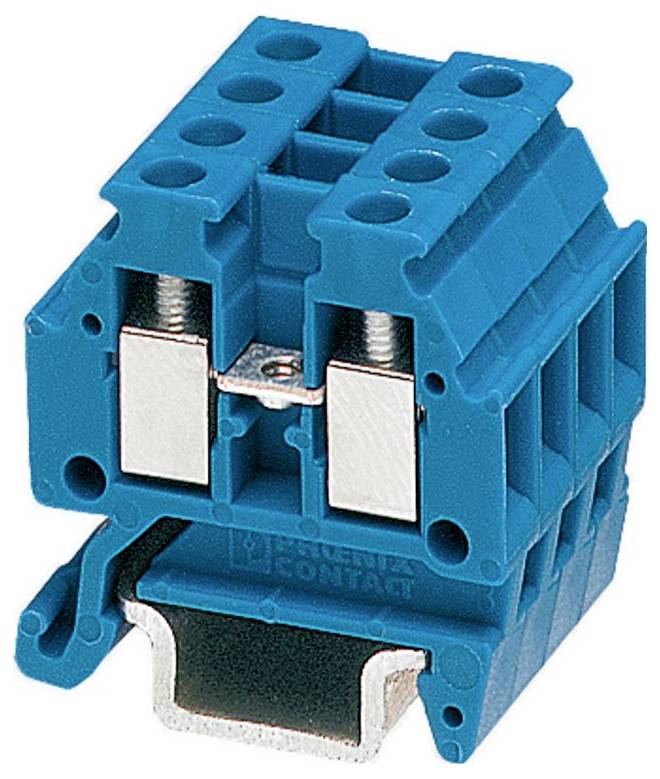

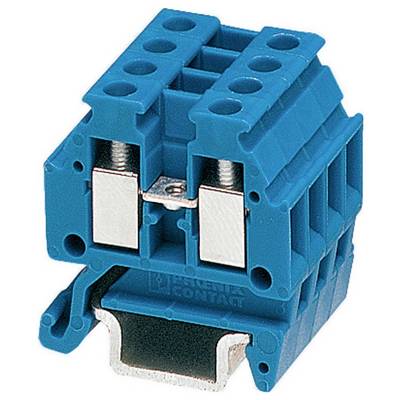

Phoenix Contact 3003363 Micro terminal Blue 50 pc(s)
EAN:
Part number:
Item no:
Product type
Micro terminal
Cross section (flexible) (max.)
1.5 mm²
Cross section (inflexible) (max.)
1.5 mm²
Nominal current - rounded value
17.5 A
Content
50 pc(s)
Datasheet (PDF)
Technical specifications
- Product type
Micro terminal
- Features
built-in jumper
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- Factory colour
Blue
- Nominal current
17.5 A
- Nominal current - rounded value
17.5 A
- Nominal voltage
400 V
- Manufacturer part #
3003363
- Content
50 pc(s)
- Type
MT 1,5 BU
- Dim
(W x H x D) 4.2 x 22 x 23.5 mm
- Width
4.2 mm
- Height
22 mm
- Flammability rating
V0
- Depth
23.5 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3580649 Phoenix Contact 3003363 Micro terminal Blue 50 pc(s)
User & Safety Instructions
User & Safety Instructions 3580649 Phoenix Contact 3003363 Micro terminal Blue 50 pc(s)
