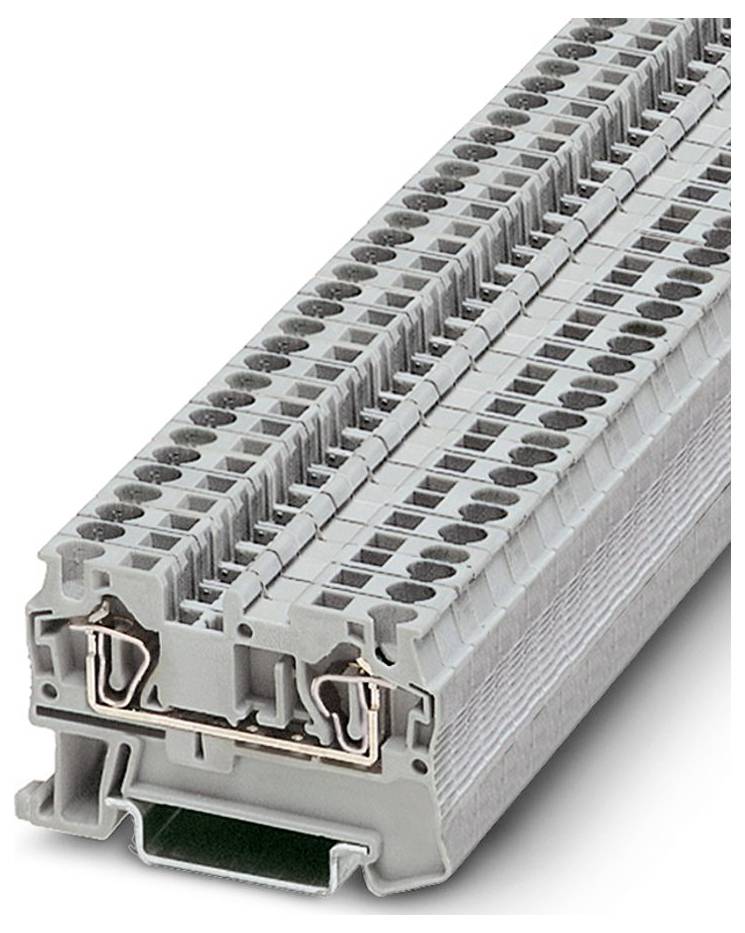

Phoenix Contact 3031364 Continuity Grey 50 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
32 A
Content
50 pc(s)
Datasheet (PDF)
Highlights & Details
- ST 4
Technical specifications
- Product type
Continuity
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
6 mm²
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
800 V
- Manufacturer part #
3031364
- Content
50 pc(s)
- Type
ST 4
- Dim
(W x H x D) 6.2 x 56 x 36.5 mm
- Width
6.2 mm
- Height
56 mm
- Flammability rating
V0
- Depth
36.5 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3580736 Phoenix Contact 3031364 Continuity Grey 50 pc(s)
User & Safety Instructions
User & Safety Instructions 3580736 Phoenix Contact 3031364 Continuity Grey 50 pc(s)
