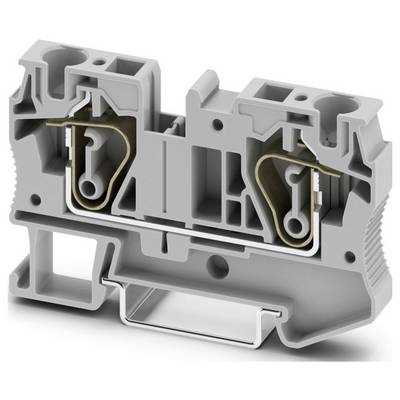

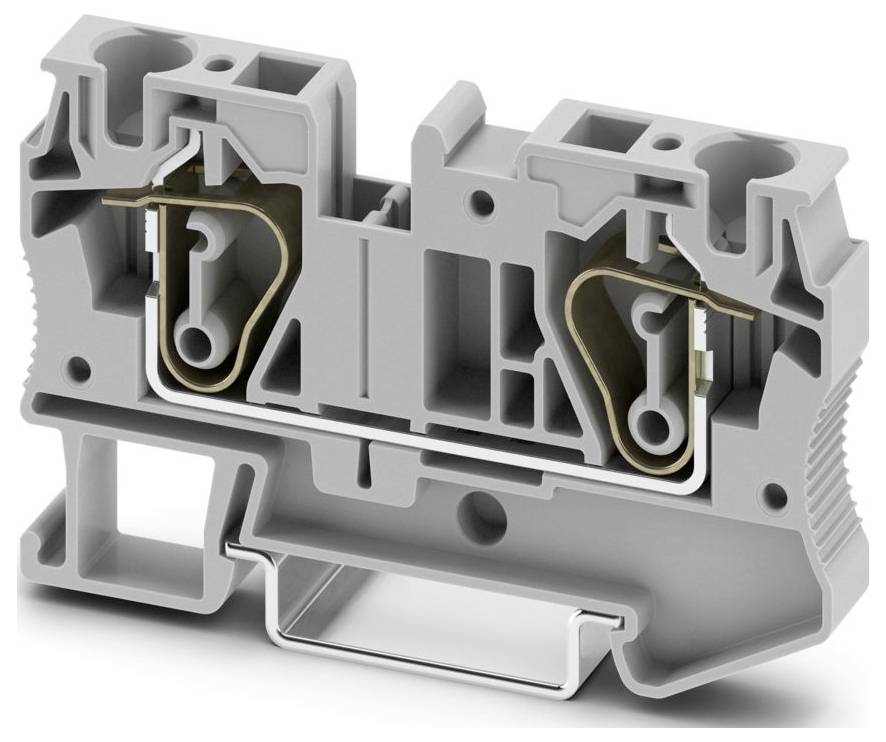

Phoenix Contact 3031487 Continuity Spring-loaded connector Grey 50 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Spring-loaded connector
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
10 mm²
Nominal current - rounded value
41 A
Datasheet (PDF)
Technical specifications
- Product type
Continuity
- Features
built-in jumper
- Connection
Spring-loaded connector
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
10 mm²
- Factory colour
Grey
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Nominal voltage
1000 V
- Manufacturer part #
3031487
- Content
50 pc(s)
- Type
ST 6
- Dim
(W x H x D) 8.2 x 69.5 x 43.5 mm
- Width
8.2 mm
- Height
69.5 mm
- Flammability rating
V0
- Depth
43.5 mm
- UKCA
yes
