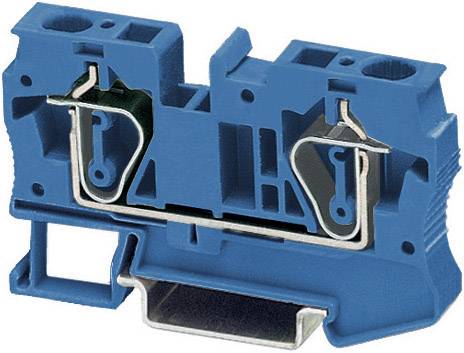

Phoenix Contact 3031490 ST 6 BU Tension Spring Feed-Through Terminal Blue
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Pull spring
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
10 mm²
Nominal current - rounded value
41 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.51
10
7% = € 0.18
€ 2.33
25
10% = € 0.26
€ 2.25
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.51 / piece)
€ 2.51
plus VAT.
14-day return policy included
Highlights & Details
Phoenix Contact 3031490 ST 6 BU Tension Spring Feed-Through Terminal Blue
Technical specifications
- Product type
Continuity
- Connection
Pull spring
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
10 mm²
- AWG (min.)
24
- AWG max.
10
- Clamp width
8.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Blue
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Nominal voltage
1000 V
- Stripping length (max.)
12 mm
- Manufacturer part #
3031490
- Content
1 pc(s)
- Industrial packaging
No
- Type
ST 6 BU
- Dim
(L x W x H) 69.5 x 8.2 x 43.5 mm
- Width
8.2 mm
- Height
43.5 mm
- Length
69.5 mm
- Weight
0.02
- Flammability rating
V0
- Nominal current (details)
41 A
- Connector cross section
flexible wires 0.2 - 6 mm² · rigid wires 0.2 - 10 mm² mm²
- Connection
-
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 744690 Phoenix Contact 3031490 ST 6 BU Tension Spring Feed-Through Terminal Blue
User & Safety Instructions
User & Safety Instructions 744690 Phoenix Contact 3031490 ST 6 BU Tension Spring Feed-Through Terminal Blue
Description
ST tension spring feed-through terminals have a space-saving design and provide optimum handling. The front connection on the ST series means that there is additional room between the cable channels for wiring. The double bridge shaft allows individual chain bridging using plug jumpers.
