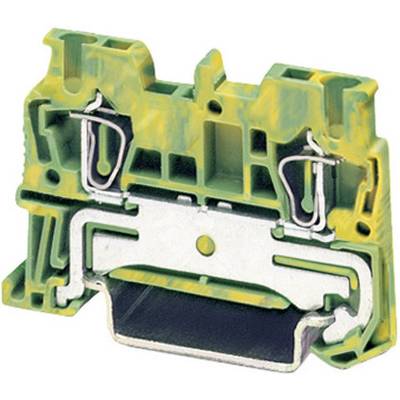

Phoenix Contact 3031513 ST 1,5-PE Spring - Protective Conductor Terminal Block ST ...- PE Green, Yellow
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
PG terminal
Connection
Pull spring
Cross section (flexible) (max.)
1.5 mm²
Cross section (inflexible) (max.)
1.5 mm²
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.19
5
6% = € 0.27
€ 3.92
10
9% = € 0.38
€ 3.81
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.19 / piece)
€ 4.19
plus VAT.
14-day return policy included
Highlights & Details
Phoenix Contact 3031513 ST 1,5-PE Spring - Protective Conductor Terminal Block ST ...- PE Green, Yellow
- ST 1,5-PE
Technical specifications
- Packaging type
Piece
- Product type
PG terminal
- Connection
Pull spring
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- AWG (min.)
28
- AWG max.
16
- Clamp width
4.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Green
Yellow
- Stripping length (max.)
10 mm
- Manufacturer part #
3031513
- Content
1 pc(s)
- Industrial packaging
No
- Type
ST 1,5-PE
- Dim
(L x W x H) 48.5 x 4.2 x 36.5 mm
- Width
4.2 mm
- Height
36.5 mm
- Length
48.5 mm
- Weight
0.01
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- Nominal current (details)
-
- Connector cross section
rigid wires 0.08 -1.5 mm² · flexible wires 0.08 -1.5 mm² mm²
- Connection
-
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 744726 Phoenix Contact 3031513 ST 1,5-PE Spring - Protective Conductor Terminal Block ST ...- PE Green, Yellow
User & Safety Instructions
User & Safety Instructions 744726 Phoenix Contact 3031513 ST 1,5-PE Spring - Protective Conductor Terminal Block ST ...- PE Green, Yellow
