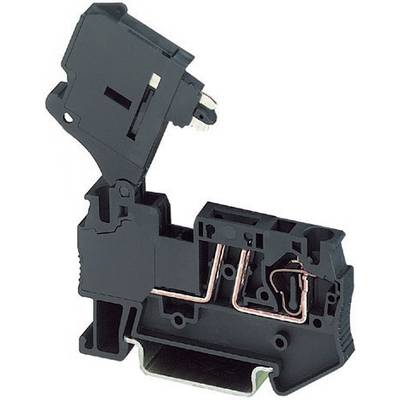

Phoenix Contact 3036547 ST 4-HESILED 24 (5X20) Spring-security Terminal Black
EAN:
Part number:
Item no:
Connection
Pull spring
Cross section (flexible) (min.)
0.08 mm²
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (min.)
0.08 mm²
Cross section (inflexible) (max.)
6 mm²
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 13.44
3
6% = € 0.74
€ 12.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 13.44 / piece)
€ 15.96
-16 %
€
Technical specifications
- Illuminated display voltage: 15 - 30 V AC/DC
- Illuminated display current: 3.5 - 8.1 mA
- Connection
Pull spring
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
28
- AWG max.
12
- Clamp width
6.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Black
- Nominal current
6.3 A
- Nominal current - rounded value
6.3 A
- Nominal voltage
24 V
- Min. stripping length
8 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
3036547
- Content
1 pc(s)
- Industrial packaging
No
- Type
ST 4-HESILED 24 (5X20)
- Dim
(L x W x H) 61.5 x 6.2 x 62.5 mm
- Width
6.2 mm
- Height
62.5 mm
- Length
61.5 mm
- Weight
0.02
- Insulation
PA
- Insulation material
PA
- Nominal current (details)
6.3 A
- Flammability rating
V0
DIN rail (top hat rail) 35 mm
Black
6.15
61.5 mm
63.38 mm
24 V
105-105 °C
V0
FALSE
Spring clamp connection
1
0.08-6 mm²
0.14-4 mm²
0.08-4 mm²
Other
- Product type
Fuse serial terminal
Documents & Downloads
Datasheet
Datasheet 744427 Phoenix Contact 3036547 ST 4-HESILED 24 (5X20) Spring-security Terminal Black
User & Safety Instructions
User & Safety Instructions 744427 Phoenix Contact 3036547 ST 4-HESILED 24 (5X20) Spring-security Terminal Black
Description
Serves two important functions of the electrical connection technology. Firstly, they assume the function of the fuse carrier and secondly, that of current distribution.
Hints
The current is set by the fuse, the voltage is determined by the selected light display
