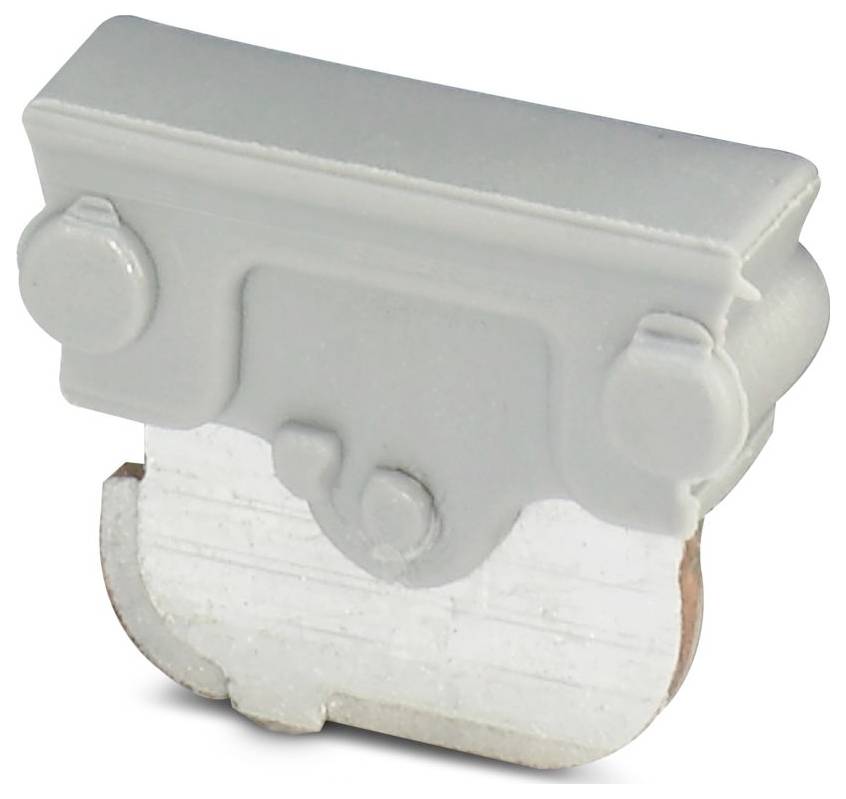

Buy Phoenix Contact 3038956 passage connectors Night grey 50 pc(s)

Image similar

Product type

passage connectors

Factory colour

Night grey

Dim

(W x H) 4 mm x 10.5 mm

Manufacturer part #

3038956

Content

50 pc(s)

Datasheet (PDF)

Unavailable

Sales and shipping:

passage connectors

Width 4 mm
Height: 10.5 mm
Colour: Grey (RAL 7042)
Flammability class according to UL 94: V0
Ambient conditions: Environmental conditions
Ambient temperature (operation): -60 °C ... 110 °C (operating temperature range incl. self-heating, max. short operating temperature see RTI ELEC.)
Ambient temperature (storage/transport): -25 °C ... 60 °C (for short period, not over 24 h, -60 °C to +70 °C )
Insulation material PA
Permissible air humidity (operation): 20 % ... 90 %
Ambient temperature (mounting): -5 °C ... 70 °C
Static insulation in cold temperatures: -40 °C.
Relative insulating material Temperature Index (Electr., UL 746 B): 125 °C
Maximum load current 20 A.
Ambient temperature (actuation): -5 °C ... 70 °C
Permissible humidity (storage/transport): 30 % ... 70 %
