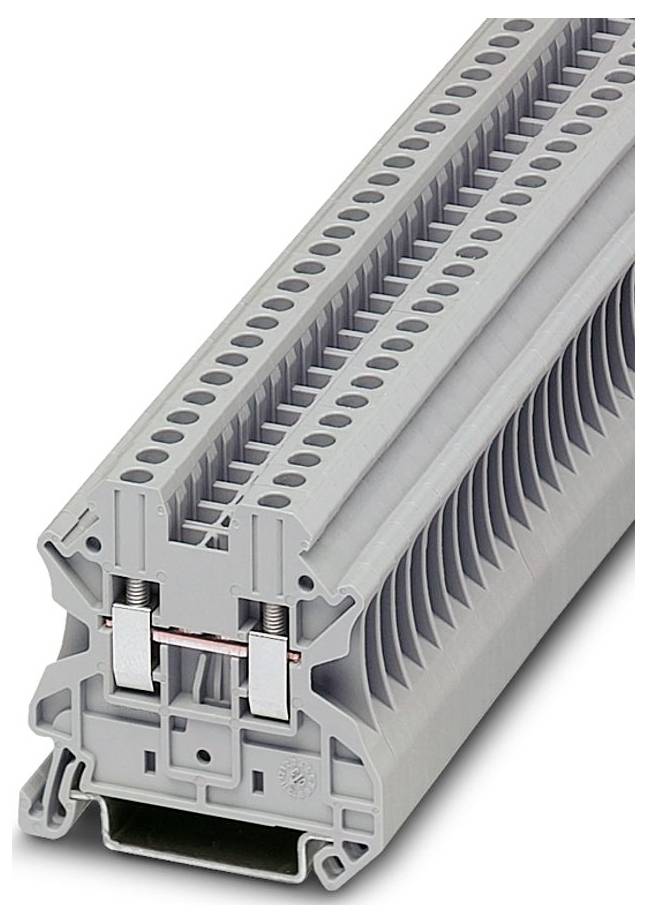

Phoenix Contact 3044076 Continuity Grey 50 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
24 A
Content
50 pc(s)
Datasheet (PDF)
Technical specifications
- Product type
Continuity
- Features
built-in jumper
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
4 mm²
- Factory colour
Grey
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
1000 V
- Manufacturer part #
3044076
- Content
50 pc(s)
- Type
UT 2,5
- Dim
(W x H x D) 5.2 x 47.7 x 46.9 mm
- Width
5.2 mm
- Height
47.7 mm
- Flammability rating
V0
- Depth
46.9 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3580755 Phoenix Contact 3044076 Continuity Grey 50 pc(s)
User & Safety Instructions
User & Safety Instructions 3580755 Phoenix Contact 3044076 Continuity Grey 50 pc(s)
