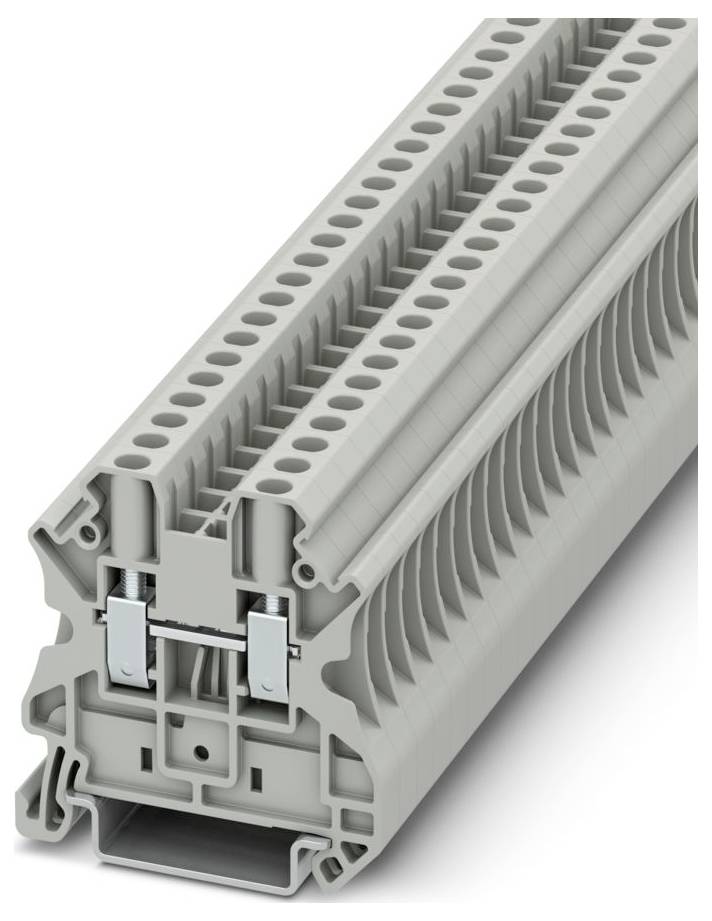

Phoenix Contact 3044102 Continuity Grey 50 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
32 A
Content
50 pc(s)
Datasheet (PDF)
Highlights & Details
- UT 4
Technical specifications
- Product type
Continuity
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
6 mm²
- Number of pins
2
- Factory colour
Grey
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
1000 V
- Manufacturer part #
3044102
- Content
50 pc(s)
- Type
UT 4
- Dim
(W x H x D) 6.2 x 47.7 x 46.9 mm
- Width
6.2 mm
- Height
47.7 mm
- Flammability rating
V0
- Depth
46.9 mm
Documents & Downloads
Datasheet
Datasheet 3580766 Phoenix Contact 3044102 Continuity Grey 50 pc(s)
User & Safety Instructions
User & Safety Instructions 3580766 Phoenix Contact 3044102 Continuity Grey 50 pc(s)
