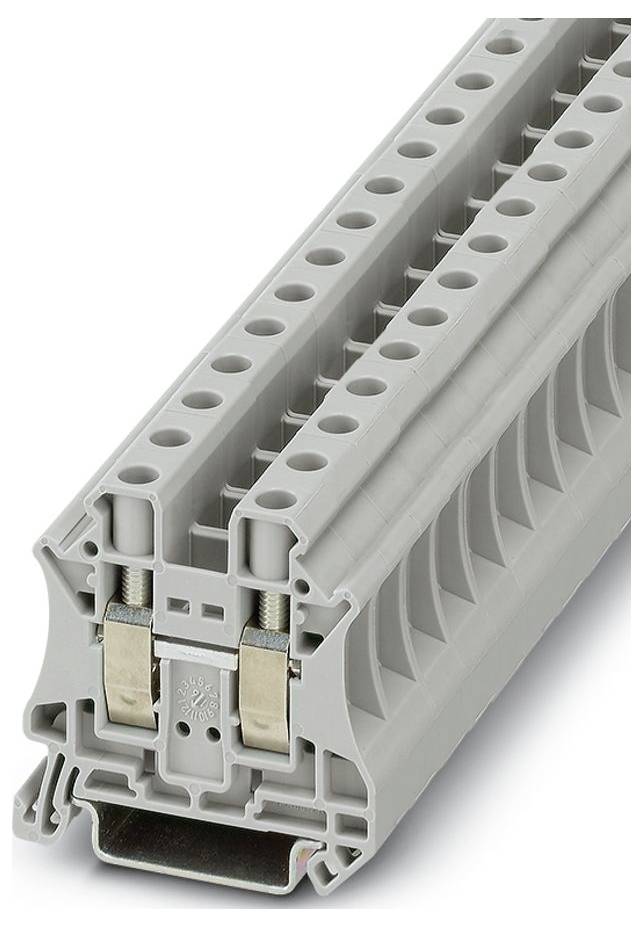

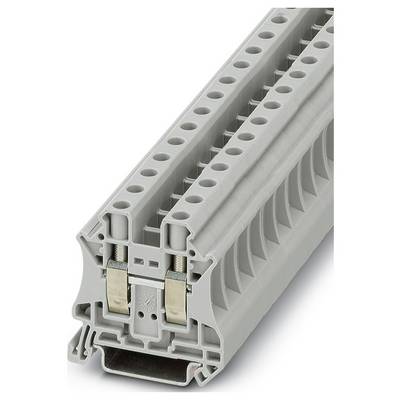

Phoenix Contact 3044160 Continuity Grey 50 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Cross section (flexible) (max.)
16 mm²
Cross section (inflexible) (max.)
16 mm²
Nominal current - rounded value
57 A
Content
50 pc(s)
Datasheet (PDF)
Highlights & Details
- UT 10
Technical specifications
- Product type
Continuity
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
16 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
16 mm²
- Factory colour
Grey
- Nominal current
57 A
- Nominal current - rounded value
57 A
- Nominal voltage
1000 V
- Manufacturer part #
3044160
- Content
50 pc(s)
- Type
UT 10
- Dim
(W x H x D) 10.2 x 47.7 x 46.9 mm
- Width
10.2 mm
- Height
47.7 mm
- Flammability rating
V0
- Connector colour
Grey
- Depth
46.9 mm
Documents & Downloads
Datasheet
Datasheet 3580772 Phoenix Contact 3044160 Continuity Grey 50 pc(s)
User & Safety Instructions
User & Safety Instructions 3580772 Phoenix Contact 3044160 Continuity Grey 50 pc(s)
