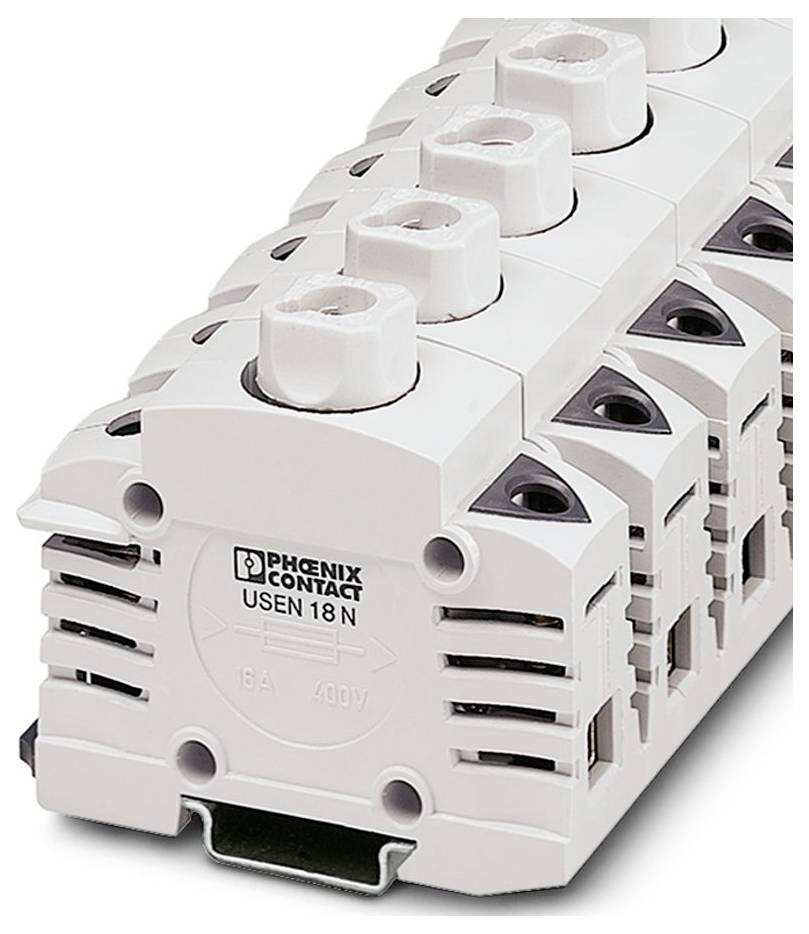

Phoenix Contact 3048360 Fuse serial terminal Light grey 10 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Fuse serial terminal
Cross section (flexible) (max.)
35 mm²
Cross section (inflexible) (max.)
35 mm²
Nominal current - rounded value
63 A
Datasheet (PDF)
Highlights & Details
- USEN 18 N
Technical specifications
- Packaging type
Piece
- Product type
Fuse serial terminal
- Cross section (flexible) (min.)
1.5 mm²
- Cross section (flexible) (max.)
35 mm²
- Cross section (inflexible) (min.)
1.5 mm²
- Cross section (inflexible) (max.)
35 mm²
- No. of rows
1
- Factory colour
Light grey
- Nominal current
63 A
- Nominal current - rounded value
63 A
- Nominal voltage
400 V
- Manufacturer part #
3048360
- Content
10 pc(s)
- Type
USEN 18 N
- Dim
(W x H x D) 27 x 84 x 59.86156 mm
- Width
27 mm
- Height
84 mm
- Flammability rating
V2
- Depth
59.86156 mm
- UKCA
yes
