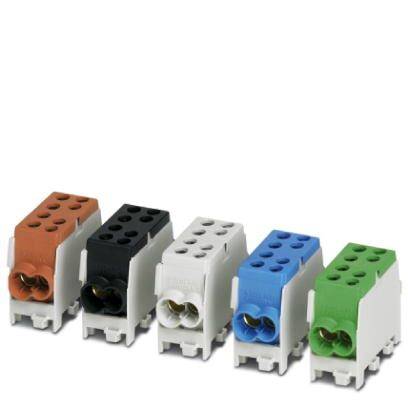

Phoenix Contact 3071352 Brown 5 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Factory colour
Brown
AWG max.
2
Stripping length
25 mm
Stripping length (max.)
25 mm
Datasheet (PDF)
Technical specifications
- Flammability class according to UL 94: V0
- Width 27 mm
- Number of floors: 1
- Number of ports: 4
- Potential: 1
- Insulating material: PA
- Dimensioning surge voltage: 8 kV
- Pollution level 3
- Over voltage category III
- Insulating material group: I
- Maximum power loss at rated condition: 4.06 W.
- Maximum load current 125 A.
- Open side wall: No.
- Connection: 1. Floor
- Packaging type
Piece
- Factory colour
Brown
- AWG max.
2
- Stripping length
25 mm
- Stripping length (max.)
25 mm
- Dim
(L x W) 55 mm x 27 mm
- Connection
Screws
- Connector colour
Brown
- Manufacturer part #
3071352
- Content
5 pc(s)
- Clamp width
27 mm
- Material
PA
- Nominal voltage
400 V
- Nominal current
125 A
- Nominal current - rounded value
125 A
- Number of pins
1
- Width
27 mm
- Length
55 mm
- Type
UDB 2X35/25 BN
- Cross section (flexible) (max.)
25 mm²
- Cross section (inflexible) (max.)
35 mm²
- Cross section (flexible) (min.)
10 mm²
- Cross section (inflexible) (min.)
10 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2225885 Phoenix Contact 3071352 Brown 5 pc(s)
Datasheet 2225885 Phoenix Contact 3071352 Brown 5 pc(s)
User & Safety Instructions
User & Safety Instructions 2225885 Phoenix Contact 3071352 Brown 5 pc(s)
Description
Conforms to DIN VDE 0603-2 / EN 60998-1.
