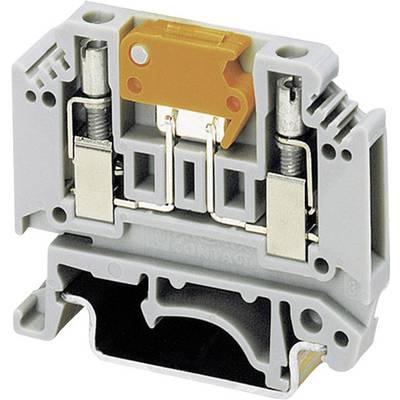

Phoenix Contact 3104013 N terminal 5.2 mm Screws Grey 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
N terminal
Connection
Screws
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 7.13
5
6% = € 0.43
€ 6.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 7.13 / piece)
€ 7.13
plus VAT.
14-day return policy included
Highlights & Details
knife disconnect terminal block
Technical specifications
- Packaging type
Piece
- Product type
N terminal
- Connection
Screws
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
24
- AWG max.
14
- Clamp width
5.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Nominal voltage
400 V
- Stripping length (max.)
7 mm
- Manufacturer part #
3104013
- Content
1 pc(s)
- Industrial packaging
No
- Type
MTK-P/P
- Dim
(L x W x H) 46 x 5.2 x 51.5 mm
- Width
5.2 mm
- Height
51.5 mm
- Length
46 mm
- Flammability rating
V0
- Connector colour
Grey
- Insulation material
PA
- Insulation
PA
- Type
With test socket screws for 2.3 mm Ø
- Nominal current (details)
16 A
- Connection
-
Documents & Downloads
Datasheet
Datasheet 743172 Phoenix Contact 3104013 N terminal 5.2 mm Screws Grey 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 743172 Phoenix Contact 3104013 N terminal 5.2 mm Screws Grey 1 pc(s) Piece
Description
For quickly locating faults, and to allow zero-voltage inspection work.
Scope of delivery
- Test connector
