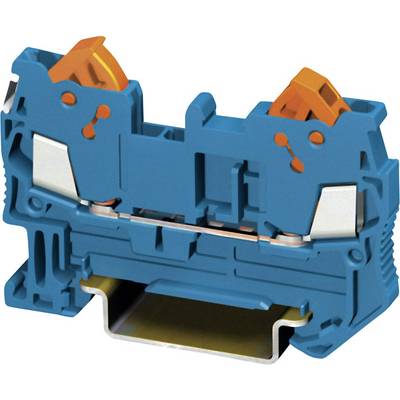

Phoenix Contact 3205022 Continuity 5.2 mm Quick-connect Blue 1 pc(s)
EAN:
Part number:
Item no:
Connection
Quick-connect
Cross section (flexible) (min.)
0.25 mm²
Cross section (flexible) (max.)
1.5 mm²
Cross section (inflexible) (min.)
0.25 mm²
Cross section (inflexible) (max.)
1.5 mm²
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.50
10
7% = € 0.11
€ 1.39
25
11% = € 0.16
€ 1.34
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.50 / piece)
€
Technical specifications
- Connection
Quick-connect
- Cross section (flexible) (min.)
0.25 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (min.)
0.25 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- AWG (min.)
22
- AWG max.
16
- Clamp width
5.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Blue
- Nominal current
17.5 A
- Nominal current - rounded value
17.5 A
- Nominal voltage
800 V
- Manufacturer part #
3205022
- Content
1 pc(s)
- Industrial packaging
No
- Type
QTC 1,5 BU
- Dim
(L x W x H) 58.8 x 5.2 x 39.3 mm
- Width
5.2 mm
- Height
39.3 mm
- Length
58.8 mm
- RoHS-compliant
- Nominal current (details)
17.5 A
- Type
QTC 1.5 BU
- Flammability rating
V0
- Connection
-
- Product type
Continuity
Documents & Downloads
Datasheet
Datasheet 744313 Phoenix Contact 3205022 Continuity 5.2 mm Quick-connect Blue 1 pc(s)
User & Safety Instructions
User & Safety Instructions 744313 Phoenix Contact 3205022 Continuity 5.2 mm Quick-connect Blue 1 pc(s)
Description
Depending on the type of connection, QUICKON quick-connection technology can save time by 60% or more. The wire is inserted without stripping. After cutting to length, the wire is connected simply by levering in with a standard screwdriver.
