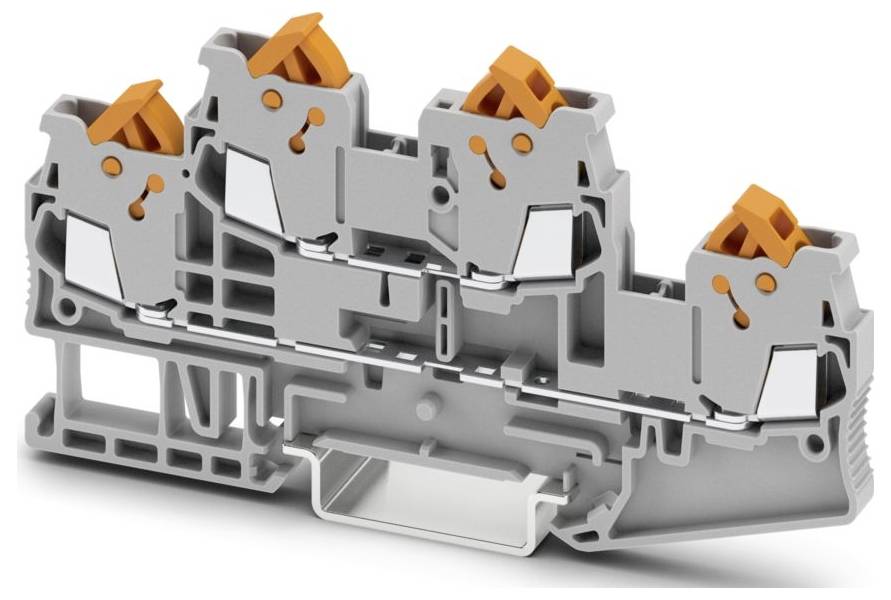

Phoenix Contact 3205116 Dual port terminal Quick-connect Grey 50 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Dual port terminal
Connection
Quick-connect
Cross section (flexible) (max.)
1.5 mm²
Cross section (inflexible) (max.)
1.5 mm²
Datasheet (PDF)
Highlights & Details
- QTTCB 1,5
Technical specifications
- Packaging type
Piece
- Product type
Dual port terminal
- Connection
Quick-connect
- Cross section (flexible) (min.)
0.25 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (min.)
0.25 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- No. of rows
2
- Factory colour
Grey
- Nominal current
17.5 A
- Nominal current - rounded value
17.5 A
- Nominal voltage
500 V
- Manufacturer part #
3205116
- Content
50 pc(s)
- Type
QTTCB 1,5
- Dim
(W x H x D) 5.2 x 99.6 x 49.9 mm
- Width
5.2 mm
- Height
99.6 mm
- Flammability rating
V0
- Connector colour
Grey
- Depth
49.9 mm
- UKCA
yes
