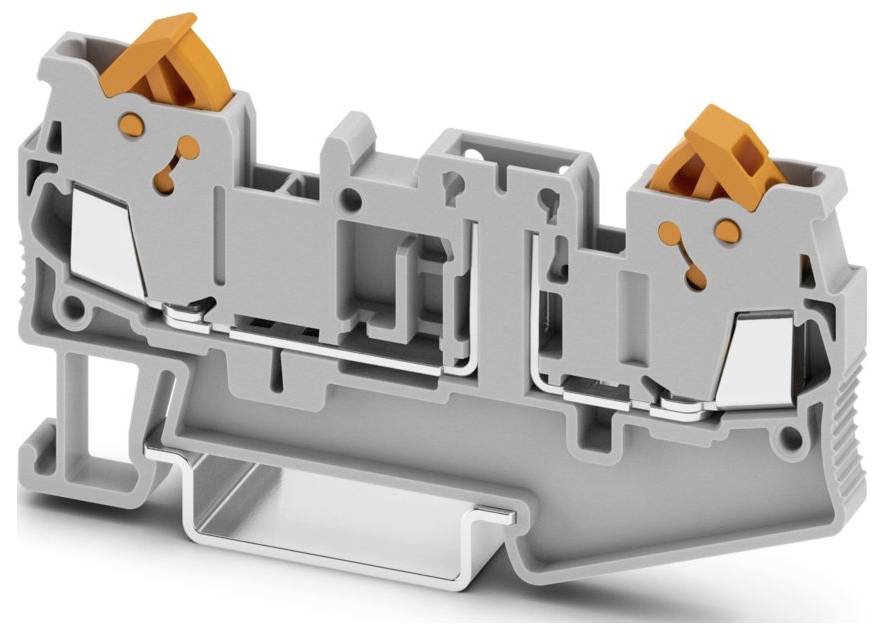

Phoenix Contact 3205145 N terminal Quick-connect Grey 50 pc(s)
EAN:
Part number:
Item no:
Product type
N terminal
Connection
Quick-connect
Cross section (flexible) (max.)
1.5 mm²
Cross section (inflexible) (max.)
1.5 mm²
Nominal current - rounded value
17.5 A
Datasheet (PDF)
Highlights & Details
- QTC 1,5-TG
Technical specifications
- Product type
N terminal
- Connection
Quick-connect
- Cross section (flexible) (min.)
0.25 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (min.)
0.25 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- Factory colour
Grey
- Nominal current
17.5 A
- Nominal current - rounded value
17.5 A
- Nominal voltage
400 V
- Manufacturer part #
3205145
- Content
50 pc(s)
- Type
QTC 1,5-TG
- Dim
(W x H x D) 5.2 x 76.4 x 39.3 mm
- Width
5.2 mm
- Height
76.4 mm
- Flammability rating
V0
- Depth
39.3 mm
- UKCA
yes
