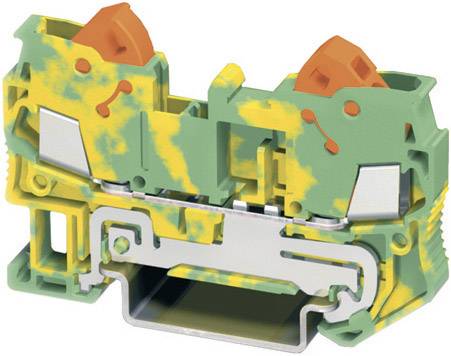

Phoenix Contact 3206432 Triple port PG terminal 6.2 mm Quick-connect Green, Yellow 1 pc(s)
EAN:
Part number:
Item no:
Product type
Triple port PG terminal
Connection
Quick-connect
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
2.5 mm²
Content
1 pc(s)
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
50
-
€ 4.61
150
7% = € 0.30
€ 4.31
250
9% = € 0.42
€ 4.19
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 50
Multiple: 50
Total (€ 4.61 / piece)
€ 230.50
plus VAT.
14-day return policy included
Highlights & Details
PE protective conductor terminal
- QTC 2,5-PE
Technical specifications
- Product type
Triple port PG terminal
- Connection
Quick-connect
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- AWG (min.)
20
- AWG max.
14
- Clamp width
6.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Green
Yellow
- Manufacturer part #
3206432
- Content
1 pc(s)
- Industrial packaging
No
- Type
QTC 2,5-PE
- Dim
(L x W x H) 62.6 x 6.2 x 39.3 mm
- Width
6.2 mm
- Height
39.3 mm
- Length
62.6 mm
- Weight
0.01
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- Type
QTC 2.5 -PE
- Connection
-
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 744380 Phoenix Contact 3206432 Triple port PG terminal 6.2 mm Quick-connect Green, Yellow 1 pc(s)
User & Safety Instructions
User & Safety Instructions 744380 Phoenix Contact 3206432 Triple port PG terminal 6.2 mm Quick-connect Green, Yellow 1 pc(s)
Description
Check the current rating of supporting rails.
