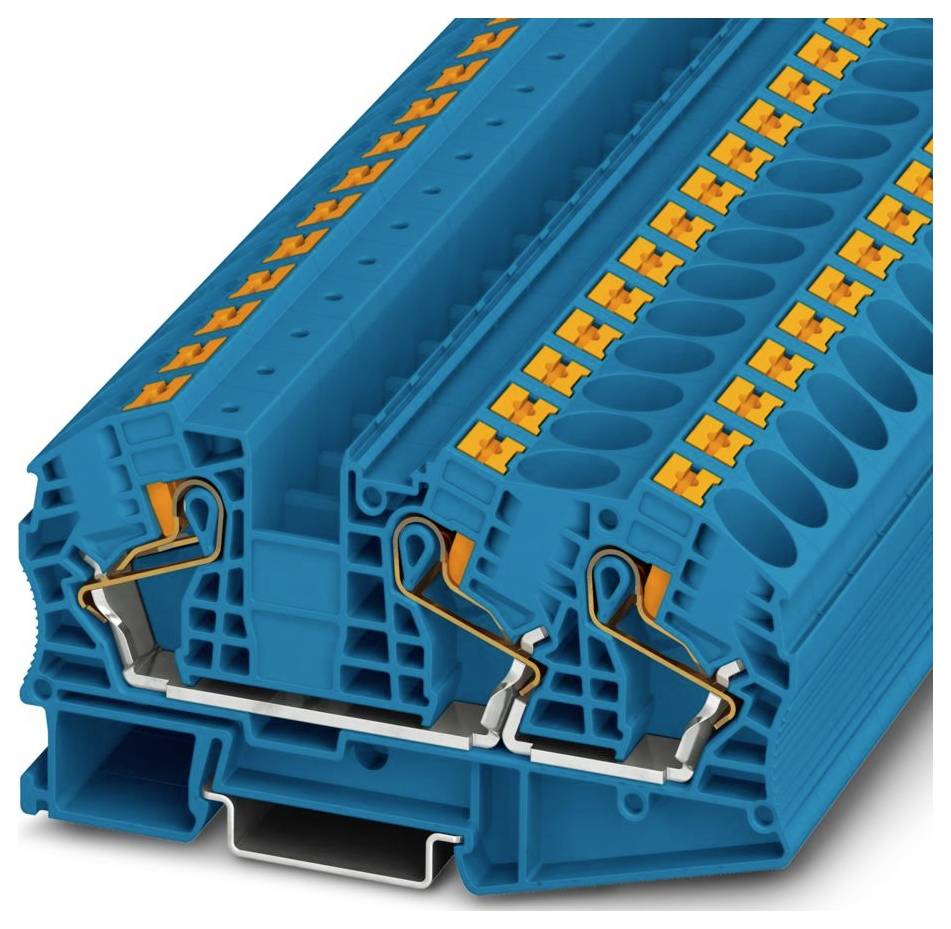

Phoenix Contact 3208773 Continuity Push-in connector Blue 25 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Continuity
Connection
Push-in connector
Cross section (flexible) (max.)
25 mm²
Cross section (inflexible) (max.)
25 mm²
Datasheet (PDF)
Highlights & Details
- PT 16-TWIN N BU
Technical specifications
- Packaging type
Piece
- Product type
Continuity
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
25 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
25 mm²
- Factory colour
Blue
- Nominal current
76 A
- Nominal current - rounded value
76 A
- Nominal voltage
1000 V
- Manufacturer part #
3208773
- Content
25 pc(s)
- Type
PT 16-TWIN N BU
- Dim
(W x H x D) 12.2 x 100.2 x 52.6 mm
- Width
12.2 mm
- Height
100.2 mm
- Flammability rating
V0
- Depth
52.6 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3581341 Phoenix Contact 3208773 Continuity Push-in connector Blue 25 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3581341 Phoenix Contact 3208773 Continuity Push-in connector Blue 25 pc(s) Piece
