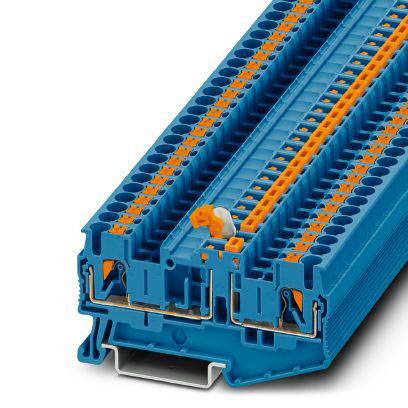

Phoenix Contact 3210163 Disconnect terminal Push-in connector Blue 1 pc(s)
EAN:
Part number:
Item no:
Product type
Disconnect terminal
Connection
Push-in connector
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
16 A
Datasheet (PDF)
Highlights & Details
Disconnect terminal
- PT 2,5-MTB BU
Technical specifications
- Number of ports: 2
- Potential: 1
- Nominal cross-section 2.5 mm²
- Dimensioning surge voltage: 6 kV
- Over voltage category III
- Insulating material group: I
- Maximum load current: 16 A (at 4 mm² conductor cross-section rigid)
- Open side wall: Yes
- Cover width 2.2 mm
- Product type
Disconnect terminal
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
26
- AWG max.
12
- No. of rows
1
- Factory colour
Blue
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Nominal voltage
400 V
- Min. stripping length
8 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
3210163
- Content
1 pc(s)
- Type
PT 2,5-MTB BU
- Dim
(L x W x H) 70.1 x 5.2 x 35.2 mm
- Width
5.2 mm
- Height
35.2 mm
- Length
70.1 mm
- Contamination level
3
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
Documents & Downloads
Datasheet
Datasheet 2225899 Phoenix Contact 3210163 Disconnect terminal Push-in connector Blue 1 pc(s)
Datasheet 2225899 Phoenix Contact 3210163 Disconnect terminal Push-in connector Blue 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2225899 Phoenix Contact 3210163 Disconnect terminal Push-in connector Blue 1 pc(s)
Description
In addition to the system features of the CLIPLINE complete system, the push-in connection terminals are characterized by simple and tool-free wiring of conductors with ferrules or rigid conductors. The compact design and the front connection enable wiring in the smallest possible space. In addition to the test option in the double function slot, an additional test tap is available for all terminals.
