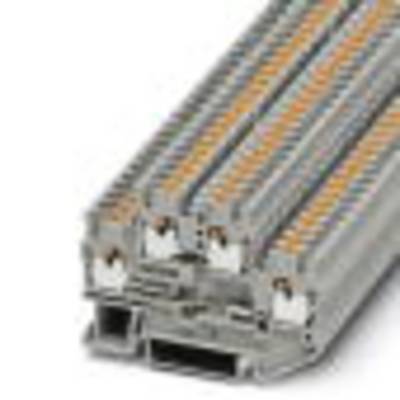

Phoenix Contact 3211480 Serial terminal Push-in connector Grey 50 pc(s)
EAN:
Part number:
Item no:
Product type
Serial terminal
Connection
Push-in connector
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (max.)
4 mm²
Content
50 pc(s)
Technical specifications
- Product type
Serial terminal
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
26
- AWG max.
12
- No. of rows
2
- Number of pins
4
- Factory colour
Grey
- Min. stripping length
8 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
3211480
- Content
50 pc(s)
- Type
PTTB 2,5-2BE
- Length
68 mm
- Flammability rating
V0
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1831106 Phoenix Contact 3211480 Serial terminal Push-in connector Grey 50 pc(s)
