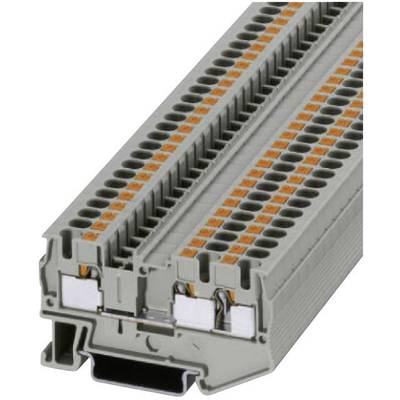

Phoenix Contact 3211771 Continuity 6.2 mm Quick-connect Grey 1 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Quick-connect
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
32 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.50
10
7% = € 0.11
€ 1.39
25
11% = € 0.16
€ 1.34
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.50 / piece)
€ 1.50
plus VAT.
14-day return policy included
Push-In three wire terminals PIT-TWIN
Highlights & Details
- PT 4-TWIN
Technical specifications
- Product type
Continuity
- Connection
Quick-connect
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
24
- AWG max.
12
- Clamp width
6.2 mm
- No. of rows
1
- Number of pins
3
- Factory colour
Grey
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
800 V
- Min. stripping length
10 mm
- Stripping length (max.)
12 mm
- Manufacturer part #
3211771
- Content
1 pc(s)
- Industrial packaging
No
- Type
PT 4-TWIN
- Dim
(L x W x H) 66.5 x 6.2 x 36.5 mm
- Width
6.2 mm
- Height
36.5 mm
- Length
66.5 mm
- Flammability rating
V0
- Nominal current (details)
32 A
- Connection
-
Documents & Downloads
Datasheet
Datasheet 734329 Phoenix Contact 3211771 Continuity 6.2 mm Quick-connect Grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 734329 Phoenix Contact 3211771 Continuity 6.2 mm Quick-connect Grey 1 pc(s)
Description
The Push-In Durchgangs terminals PIT are specially suitable for the direct tool-free wiring of conductors with strands cover or fixed conductors. The terminal point of any type can be opened by screw driver and with the help of actuator push buttons.
