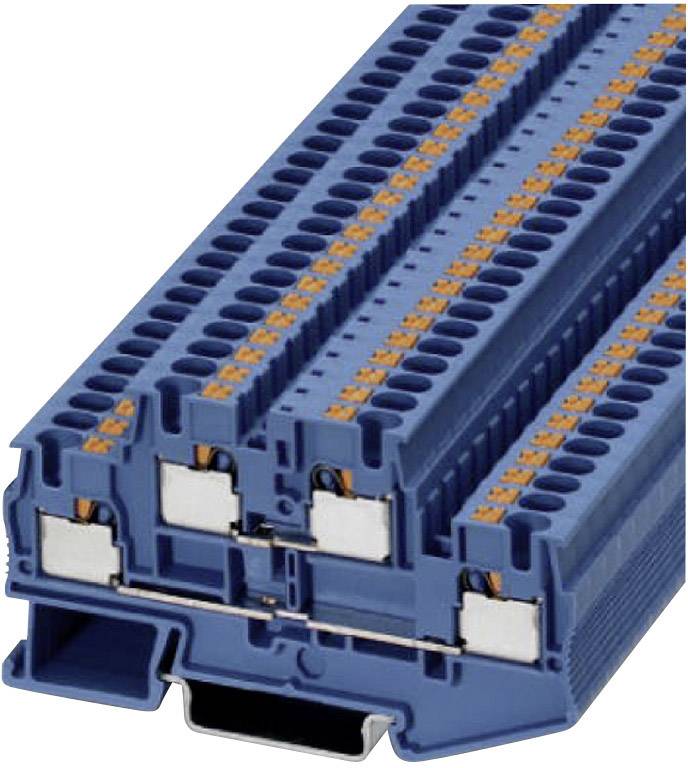

Phoenix Contact 3211793 PTTB 4 BU Blue
EAN:
Part number:
Item no:
Product type
Dual port terminal
Connection
Quick-connect
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
28 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.51
10
7% = € 0.18
€ 2.33
25
10% = € 0.26
€ 2.25
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.51 / piece)
€ 2.51
plus VAT.
14-day return policy included
Highlights & Details
Phoenix Contact 3211793 PTTB 4 BU Blue
- PTTB 4 BU
Technical specifications
- Product type
Dual port terminal
- Connection
Quick-connect
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
24
- AWG max.
10
- Clamp width
6.2 mm
- No. of rows
2
- Number of pins
4
- Factory colour
Blue
- Nominal current
28 A
- Nominal current - rounded value
28 A
- Nominal voltage
500 V
- Min. stripping length
10 mm
- Stripping length (max.)
12 mm
- Manufacturer part #
3211793
- Content
1 pc(s)
- Industrial packaging
No
- Type
PTTB 4 BU
- Dim
(L x W x H) 83.5 x 6.2 x 47.5 mm
- Width
6.2 mm
- Height
47.5 mm
- Length
83.5 mm
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- Nominal current (details)
-
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 734315 Phoenix Contact 3211793 PTTB 4 BU Blue
User & Safety Instructions
User & Safety Instructions 734315 Phoenix Contact 3211793 PTTB 4 BU Blue
Description
The potential of double level terminals PITTB reduces the space consumption by 50% in comparison to single storey to two storey.. The problem free contacting for mounting rails is ensured by simple snapping on to the rails.
