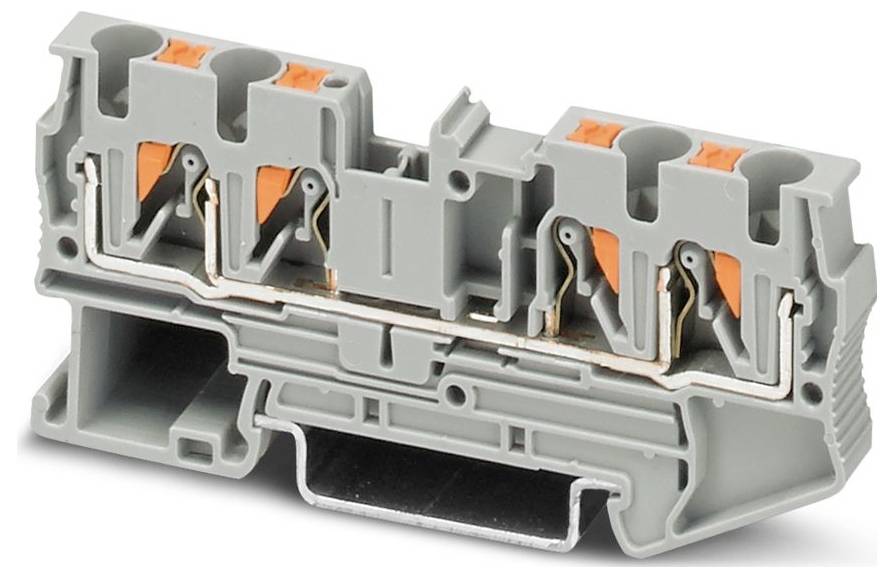

Phoenix Contact 3211797 Continuity Push-in connector Grey 50 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Push-in connector
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
32 A
Datasheet (PDF)
Highlights & Details
- PT 4-QUATTRO
Technical specifications
- Product type
Continuity
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
6 mm²
- Number of pins
4
- Factory colour
Grey
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
800 V
- Manufacturer part #
3211797
- Content
50 pc(s)
- Type
PT 4-QUATTRO
- Dim
(W x H x D) 6.2 x 77 x 35.3 mm
- Width
6.2 mm
- Height
77 mm
- Flammability rating
V0
- Depth
35.3 mm
