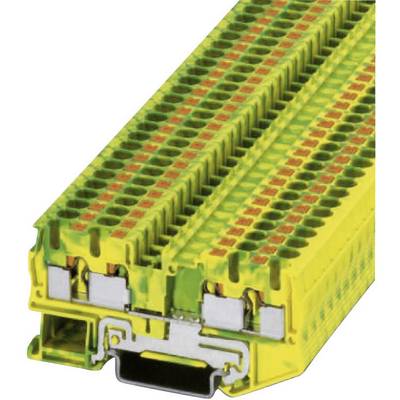

Phoenix Contact 3211809 Triple port PG terminal 6.2 mm Quick-connect Green, Yellow 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Triple port PG terminal
Connection
Quick-connect
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.03
5
6% = € 0.32
€ 4.71
10
9% = € 0.46
€ 4.57
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.03 / piece)
€ 5.03
plus VAT.
14-day return policy included
Push-In double level terminal PIT-PE
Technical specifications
- Packaging type
Piece
- Product type
Triple port PG terminal
- Features
+ push-in spring bracket
- Connection
Quick-connect
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
24
- AWG max.
10
- Clamp width
6.2 mm
- No. of rows
1
- Pins per row
4
- Number of pins
4
- Factory colour
Green
Yellow
- Min. stripping length
10 mm
- Stripping length (max.)
12 mm
- Manufacturer part #
3211809
- Content
1 pc(s)
- Industrial packaging
No
- Type
PT 4-QUATTRO-PE
- Dim
(L x W x H) 77 x 6.2 x 35.3 mm
- Width
6.2 mm
- Height
35.3 mm
- Length
77 mm
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- Material
Polyamide
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 734345 Phoenix Contact 3211809 Triple port PG terminal 6.2 mm Quick-connect Green, Yellow 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 734345 Phoenix Contact 3211809 Triple port PG terminal 6.2 mm Quick-connect Green, Yellow 1 pc(s) Piece
Description
The Push-In terminals PIT fits for the direct tool-free wiring of conductors with wire end ferrule or fixed conductors. With the help of actuating button, any type of contact points can be opened by screw driver
