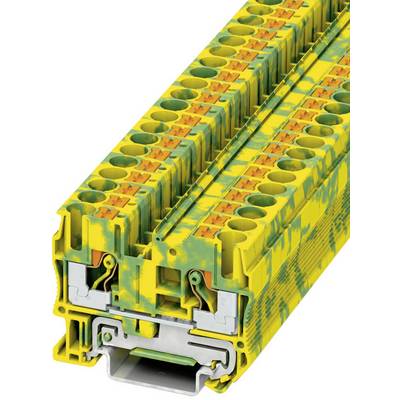

Phoenix Contact 3211822 Triple port PG terminal 8.2 mm Quick-connect Green, Yellow 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Triple port PG terminal
Connection
Quick-connect
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
10 mm²
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.61
5
7% = € 0.30
€ 4.31
10
9% = € 0.42
€ 4.19
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.61 / piece)
€ 4.61
plus VAT.
14-day return policy included
Three-level protective conductor terminal PT 6-PE
Technical specifications
- Packaging type
Piece
- Product type
Triple port PG terminal
- Features
+ push-in spring bracket
- Connection
Quick-connect
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
10 mm²
- AWG (min.)
20
- AWG max.
8
- Clamp width
8.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Green
Yellow
- Min. stripping length
10 mm
- Stripping length (max.)
12 mm
- Manufacturer part #
3211822
- Content
1 pc(s)
- Industrial packaging
No
- Type
PT 6-PE
- Dim
(L x W x H) 57.7 x 8.2 x 42.2 mm
- Width
8.2 mm
- Height
42.2 mm
- Length
57.7 mm
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
Documents & Downloads
Datasheet
Datasheet 749225 Phoenix Contact 3211822 Triple port PG terminal 8.2 mm Quick-connect Green, Yellow 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 749225 Phoenix Contact 3211822 Triple port PG terminal 8.2 mm Quick-connect Green, Yellow 1 pc(s) Piece
Description
The Push-In terminals PIT fits for the direct tool-free wiring of conductors with wire end ferrule or fixed conductors. The terminal point of any type can be opened by screw driver and with the help of actuator push buttons.
