Image similar
1/4
Image similar

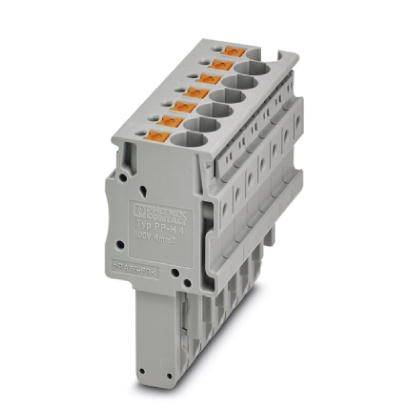

Phoenix Contact 3212048 Grey 25 pc(s)
EAN:
Part number:
Item no:
Factory colour
Grey
AWG max.
10
Stripping length
10 mm
Stripping length (max.)
12 mm
Dim
(L x W x H) 21 x 43.4 x 24 mm
Datasheet (PDF)
Technical specifications
- Flammability class according to UL 94: V0
- Width 43.4 mm
- Number of floors: 1
- Number of ports: 7
- Potential: 7
- Insulating material: PA
- Dimensioning surge voltage: 8 kV
- Pollution level 3
- Over voltage category III
- Insulating material group: I
- Maximum power loss at rated condition: 1.02 W.
- Maximum load current: 32 A (at 6 mm² conductor cross-section)
- Open side wall: No.
- Building height 24 mm
- Pitch: 6.2 mm

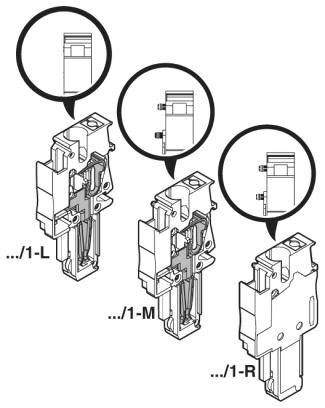

- Connection: 1. Floor connection on the left
- Factory colour
Grey
- AWG max.
10
- Stripping length
10 mm
- Stripping length (max.)
12 mm
- Dim
(L x W x H) 21 x 43.4 x 24 mm
- Connection
Push-in connector
Jack connector
- Connector colour
Grey
- Manufacturer part #
3212048
- Content
25 pc(s)
- Material
PA
- Nominal voltage
800 V
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Number of pins
7
- Width
43.4 mm
- Height
24 mm
- Length
21 mm
- Type
PP-H 4/ 7
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (max.)
6 mm²
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2225920 Phoenix Contact 3212048 Grey 25 pc(s)
Datasheet 2225920 Phoenix Contact 3212048 Grey 25 pc(s)
User & Safety Instructions
User & Safety Instructions 2225920 Phoenix Contact 3212048 Grey 25 pc(s)
Description
Tested for railway applications.
This text is machine translated.
This text is machine translated.
