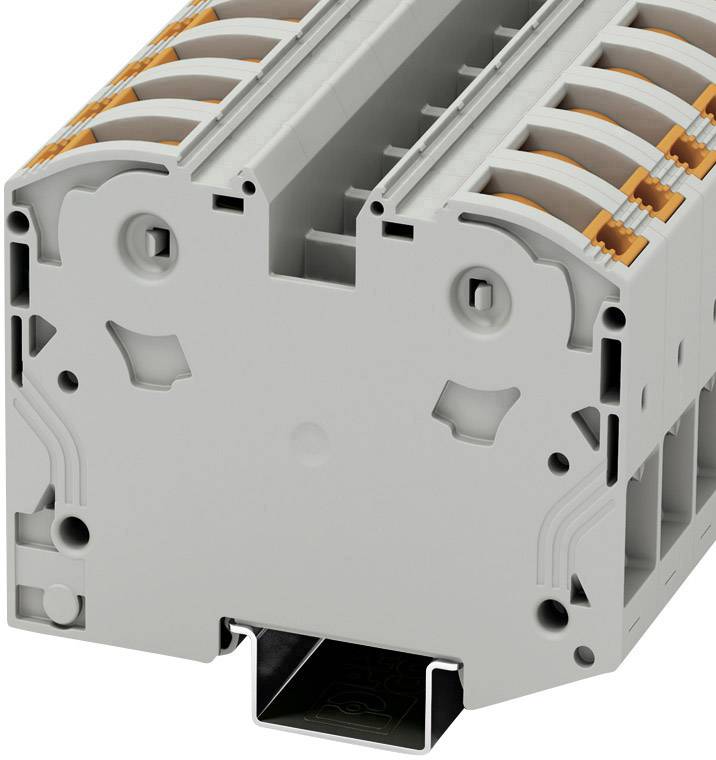

Phoenix Contact 3212064 High power terminal 16 mm Spring-loaded terminal Grey 10 pc(s)
EAN:
Part number:
Item no:
Product type
High power terminal
Connection
Spring-loaded terminal
Cross section (flexible) (max.)
35 mm²
Cross section (inflexible) (max.)
35 mm²
Nominal current - rounded value
125 A
Datasheet (PDF)
Number (Package size 10 pc(s))
Total (€ 5.04 / piece)
€ 50.41
plus VAT.
14-day return policy included
Highlights & Details
High-current terminal PTPOWER 35
- PTPOWER 35
Technical specifications
- Product type
High power terminal
- Connection
Spring-loaded terminal
- Cross section (flexible) (min.)
2.5 mm²
- Cross section (flexible) (max.)
35 mm²
- Cross section (inflexible) (min.)
2.5 mm²
- Cross section (inflexible) (max.)
35 mm²
- AWG (min.)
12
- AWG max.
2
- Clamp width
16 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
125 A
- Nominal current - rounded value
125 A
- Nominal voltage
1000 V
- Stripping length (max.)
25 mm
- Manufacturer part #
3212064
- Content
10 pc(s)
- Industrial packaging
Yes
- Type
PTPOWER 35
- Dim
(L x W x H) 91.6 x 16 x 69.8 mm
- Width
16 mm
- Height
69.8 mm
- Length
91.6 mm
- Flammability rating
V0
- UKCA
yes
