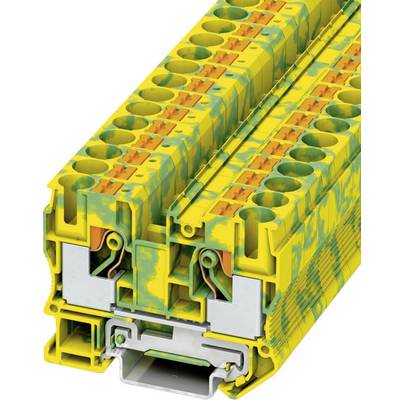

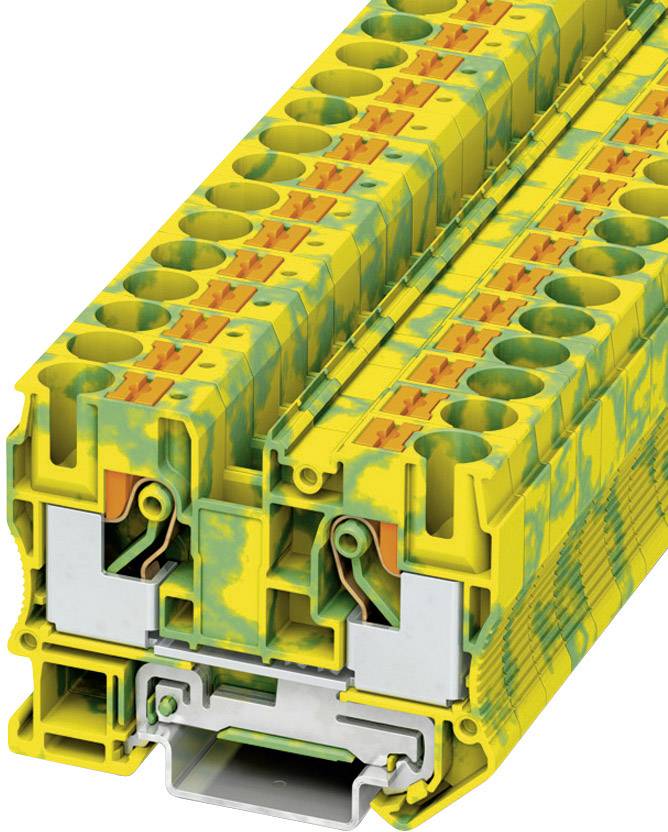

Phoenix Contact 3212131 Triple port PG terminal 10.2 mm Quick-connect Configuration: Terre Green, Yellow 1 pc(s)
EAN:
Part number:
Item no:
Product type
Triple port PG terminal
Connection
Quick-connect
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
16 mm²
Nominal current - rounded value
57 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.03
5
6% = € 0.32
€ 4.71
10
9% = € 0.46
€ 4.57
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.03 / piece)
€ 10.92
-54 %
€ 5.03
plus VAT.
14-day return policy included
Three-level protective conductor terminal PT 10-PE
Technical specifications
- Product type
Triple port PG terminal
- Features
+ push-in spring bracket
- Connection
Quick-connect
- Configuration
Terre
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
16 mm²
- AWG (min.)
20
- AWG max.
6
- Clamp width
10.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Green
Yellow
- Nominal current
57 A
- Nominal current - rounded value
57 A
- Nominal voltage
1000 V
- Stripping length (max.)
18 mm
- Manufacturer part #
3212131
- Content
1 pc(s)
- Industrial packaging
No
- Type
PT 10-PE
- Dim
(L x W x H) 67.7 x 10.2 x 49.5 mm
- Width
10.2 mm
- Height
49.5 mm
- Length
67.7 mm
- Weight
0.0270 kg
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 749338 Phoenix Contact 3212131 Triple port PG terminal 10.2 mm Quick-connect Configuration: Terre Green, Yellow 1 pc(s)
User & Safety Instructions
User & Safety Instructions 749338 Phoenix Contact 3212131 Triple port PG terminal 10.2 mm Quick-connect Configuration: Terre Green, Yellow 1 pc(s)
Description
The Push-In terminals PIT fits for the direct tool-free wiring of conductors with wire end ferrule or fixed conductors. The terminal point of any type can be opened by screw driver and with the help of actuator push buttons.
