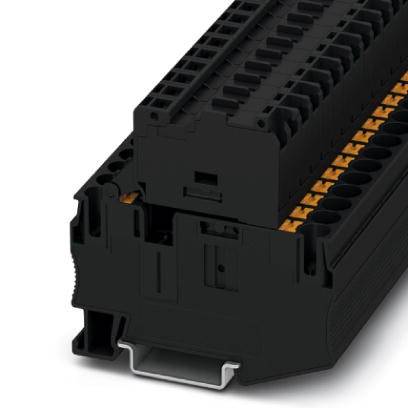

Phoenix Contact 3212133 Fuse serial terminal Push-in connector Black 50 pc(s)
EAN:
Part number:
Item no:
Product type
Fuse serial terminal
Connection
Push-in connector
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
10 mm²
Nominal current - rounded value
10 A
Datasheet (PDF)
Technical specifications
- Number of ports: 2
- Nominal cross-section: 6 mm²
- Dimensioning surge voltage: 6 kV
- Over voltage category III
- Insulating material group: I
- Maximum load current: 10 A (the current is determined by the fuse used.)
- Open side wall: No.
- Product type
Fuse serial terminal
- Features
+ push-in spring bracket
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
10 mm²
- AWG (min.)
20
- AWG max.
8
- No. of rows
1
- Number of pins
2
- Factory colour
Black
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Nominal voltage
250 V
- Min. stripping length
10 mm
- Stripping length (max.)
12 mm
- Manufacturer part #
3212133
- Content
50 pc(s)
- Type
PT 6-HESILED 250 (6,3X32)
- Dim
(L x W) 74.5 mm x 8.2 mm
- Width
8.2 mm
- Length
74.5 mm
- Rated surge voltage
6 kV
- Contamination level
3
- Flammability rating
V0
- Connector colour
Black
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2225923 Phoenix Contact 3212133 Fuse serial terminal Push-in connector Black 50 pc(s)
Datasheet 2225923 Phoenix Contact 3212133 Fuse serial terminal Push-in connector Black 50 pc(s)
User & Safety Instructions
User & Safety Instructions 2225923 Phoenix Contact 3212133 Fuse serial terminal Push-in connector Black 50 pc(s)
Description

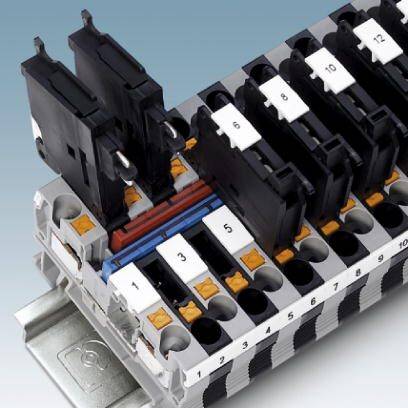

In addition to the system features of the CLIPLINE complete system, the push-in connection terminals are characterized by simple and tool-free wiring of conductors with ferrules or rigid conductors. The compact design and the front connection enable wiring in the smallest possible space. In addition to the test option in the double function slot, an additional test tap is available for all terminals.
