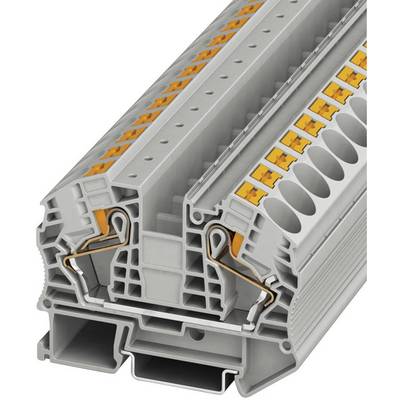

Phoenix Contact 3212138 Continuity 12.2 mm Quick-connect Grey 1 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Quick-connect
Cross section (flexible) (max.)
16 mm²
Cross section (inflexible) (max.)
25 mm²
Nominal current - rounded value
76 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.51
10
7% = € 0.18
€ 2.33
25
10% = € 0.26
€ 2.25
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.51 / piece)
€ 2.51
plus VAT.
14-day return policy included
Push-In Durchgangs terminals PIT
Highlights & Details
- PT 16 N
Technical specifications
- Product type
Continuity
- Connection
Quick-connect
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
16 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
25 mm²
- AWG (min.)
20
- AWG max.
6
- Clamp width
12.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
76 A
- Nominal current - rounded value
76 A
- Nominal voltage
1000 V
- Stripping length (max.)
18 mm
- Manufacturer part #
3212138
- Content
1 pc(s)
- Industrial packaging
No
- Type
PT 16 N
- Dim
(L x W x H) 75.4 x 12.2 x 52.6 mm
- Width
12.2 mm
- Height
52.6 mm
- Length
75.4 mm
- Flammability rating
V0
- Nominal current (details)
30 A
Documents & Downloads
Datasheet
Datasheet 556370 Phoenix Contact 3212138 Continuity 12.2 mm Quick-connect Grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 556370 Phoenix Contact 3212138 Continuity 12.2 mm Quick-connect Grey 1 pc(s)
Description
The Push-In Durchgangs terminals PIT are specially suitable for the direct tool-free wiring of conductors with strands cover or fixed conductors. The terminal point of any type can be opened by screw driver and with the help of actuator push buttons.
