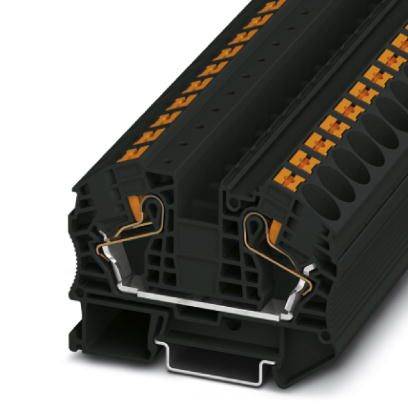

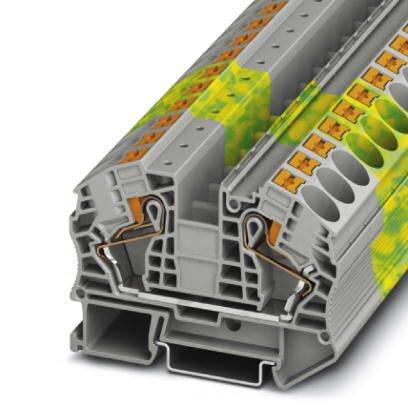

Phoenix Contact 3212145 Continuity Push-in connector Black 50 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Continuity
Connection
Push-in connector
Cross section (flexible) (max.)
25 mm²
Cross section (inflexible) (max.)
25 mm²
Datasheet (PDF)
Technical specifications
- Number of ports: 2
- Potential: 1
- Nominal cross-section: 16 mm²
- Dimensioning surge voltage: 8 kV
- Over voltage category III
- Insulating material group: I
- Maximum load current: 85 A (at 25 mm² conductor cross-section rigid)
- Open side wall: Yes
- Cover width 2.2 mm
- Packaging type
Piece
- Product type
Continuity
- Features
+ test option
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
25 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
25 mm²
- AWG (min.)
20
- AWG max.
4
- No. of rows
1
- Factory colour
Black
- Nominal current
76 A
- Nominal current - rounded value
76 A
- Nominal voltage
1000 V
- Stripping length (max.)
18 mm
- Manufacturer part #
3212145
- Content
50 pc(s)
- Type
PT 16 N BK
- Dim
(L x W) 75.4 mm x 12.2 mm
- Width
12.2 mm
- Length
75.4 mm
- Rated surge voltage
8 kV
- Contamination level
3
- Flammability rating
V0
- Connector colour
Black
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2225924 Phoenix Contact 3212145 Continuity Push-in connector Black 50 pc(s) Piece
Datasheet 2225924 Phoenix Contact 3212145 Continuity Push-in connector Black 50 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2225924 Phoenix Contact 3212145 Continuity Push-in connector Black 50 pc(s) Piece
Description
In addition to the system features of the CLIPLINE complete system, the push-in connection terminals are characterized by simple and tool-free wiring of conductors with ferrules or rigid conductors. The compact design and the front connection enable wiring in the smallest possible space. In addition to the test option in the double function slot, an additional test tap is available for all terminals.
