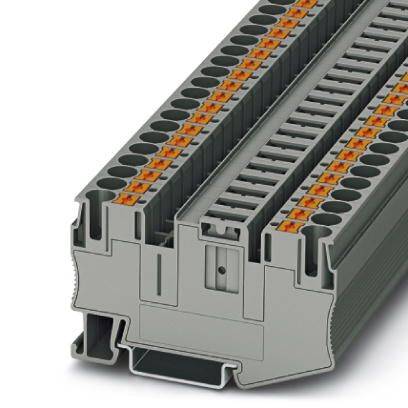

Image similar
1/2
Image similar
Phoenix Contact 3212163 N terminal Push-in connector Grey 50 pc(s)
EAN:
Part number:
Item no:
Product type
N terminal
Connection
Push-in connector
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
10 mm²
Nominal current - rounded value
20 A
Datasheet (PDF)
Technical specifications
- Number of ports: 2
- Potential: 1
- Nominal cross-section: 6 mm²
- Dimensioning surge voltage: 6 kV
- Over voltage category III
- Insulating material group: I
- Maximum load current 20 A.
- Open side wall: No.
- Test specification touch protection: DIN EN 50274 (VDE 0660-514):2002-11
- Hand back safety: Guaranteed
- Finger safety: Guaranteed
- Target value: 5 N.
- Short time current: 0.3 kA
- Product type
N terminal
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
10 mm²
- AWG (min.)
20
- AWG max.
8
- No. of rows
1
- Factory colour
Grey
- Nominal current
20 A
- Nominal current - rounded value
20 A
- Nominal voltage
500 V
- Min. stripping length
10 mm
- Stripping length (max.)
12 mm
- Manufacturer part #
3212163
- Content
50 pc(s)
- Type
PT 6-TG
- Dim
(L x W x H) 74.1 x 8.2 x 42.2 mm
- Width
8.2 mm
- Height
42.2 mm
- Length
74.1 mm
- Contamination level
3
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2225925 Phoenix Contact 3212163 N terminal Push-in connector Grey 50 pc(s)
Datasheet 2225925 Phoenix Contact 3212163 N terminal Push-in connector Grey 50 pc(s)
User & Safety Instructions
User & Safety Instructions 2225925 Phoenix Contact 3212163 N terminal Push-in connector Grey 50 pc(s)
Description
In addition to the system features of the CLIPLINE complete system, the push-in connection terminals are characterized by simple and tool-free wiring of conductors with ferrules or rigid conductors. The compact design and the front connection enable wiring in the smallest possible space. In addition to the test option in the double function slot, an additional test tap is available for all terminals.
