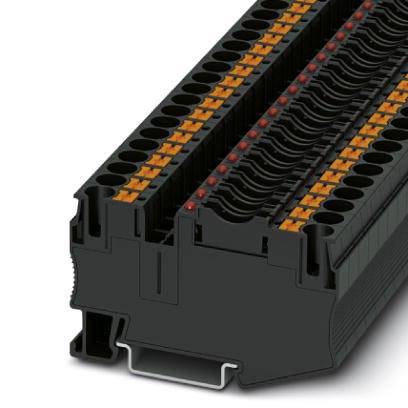

Phoenix Contact 3212169 Fuse serial terminal Push-in connector Black 50 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Fuse serial terminal
Connection
Push-in connector
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
10 mm²
Datasheet (PDF)
Technical specifications
- Number of ports: 2
- Nominal cross-section: 6 mm²
- Dimensioning surge voltage: 6 kV
- Over voltage category III
- Insulating material group: I
- Maximum load current 30 A (in single arrangement with 4 mm² conductor cross-section)
- Open side wall: No.
- Packaging type
Piece
- Product type
Fuse serial terminal
- Features
+ push-in spring bracket
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
10 mm²
- AWG (min.)
20
- AWG max.
8
- No. of rows
1
- Factory colour
Black
- Nominal current
25 A
- Nominal current - rounded value
25 A
- Nominal voltage
12 V
- Min. stripping length
10 mm
- Stripping length (max.)
12 mm
- Manufacturer part #
3212169
- Content
50 pc(s)
- Type
PT 6-FSI/C-LED 12
- Dim
(L x W) 74.1 mm x 8.2 mm
- Width
8.2 mm
- Length
74.1 mm
- Rated surge voltage
6 kV
- Contamination level
3
- Flammability rating
V0
- Connector colour
Black
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2225926 Phoenix Contact 3212169 Fuse serial terminal Push-in connector Black 50 pc(s) Piece
Datasheet 2225926 Phoenix Contact 3212169 Fuse serial terminal Push-in connector Black 50 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2225926 Phoenix Contact 3212169 Fuse serial terminal Push-in connector Black 50 pc(s) Piece
Description

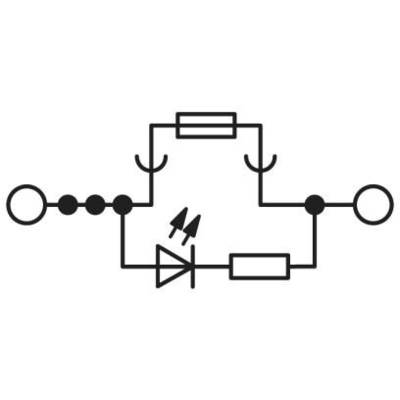

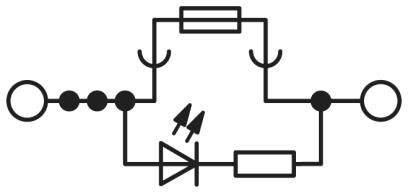

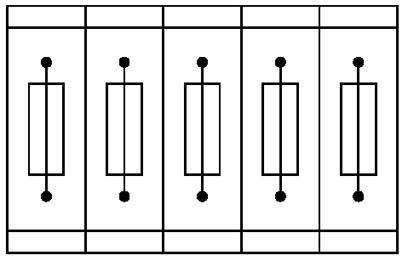

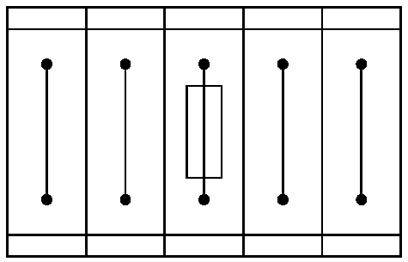

In addition to the system features of the CLIPLINE complete system, the push-in connection terminals are characterized by simple and tool-free wiring of conductors with ferrules or rigid conductors. The compact design and the front connection enable wiring in the smallest possible space. In addition to the test option in the double function slot, an additional test tap is available for all terminals. The easy-to-access fuse links can be conveniently inserted or replaced. Convenient testing of the fuses by double-sided test tap. Quick identification of faulty fuses thanks to LED status indicator.
