Phoenix Contact 3212934 Continuity 8.2 mm Pull spring Grey 50 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Continuity
Connection
Pull spring
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
10 mm²
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 2.27 / piece)
€ 113.44
plus VAT.
Only 5 Set(s) available

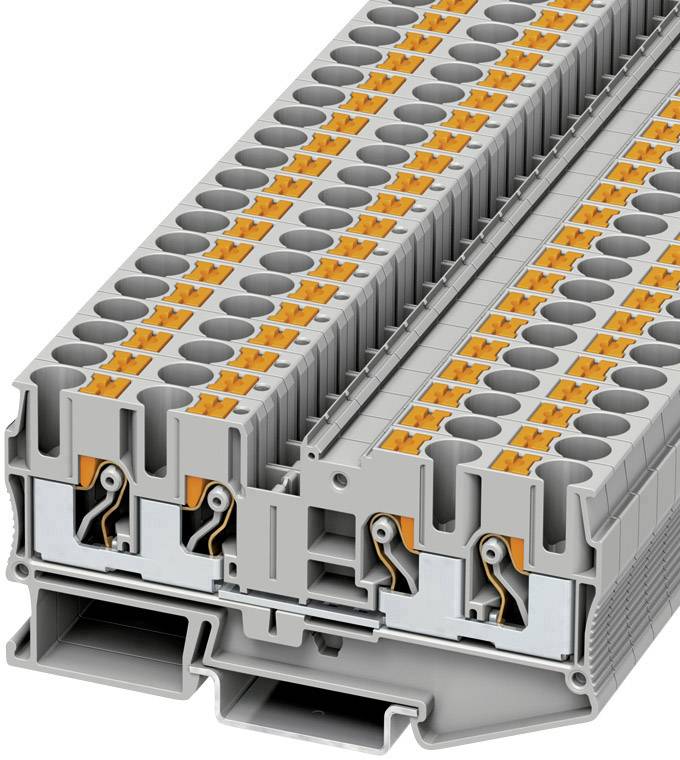

Through terminal PT 6-QUATTRO
Technical specifications
- Packaging type
Piece
- Product type
Continuity
- Features
+ push-in spring bracket
- Connection
Pull spring
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
10 mm²
- AWG (min.)
20
- AWG max.
8
- Clamp width
8.2 mm
- No. of rows
1
- Pins per row
4
- Number of pins
4
- Factory colour
Grey
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Nominal voltage
1000 V
- Min. stripping length
10 mm
- Stripping length (max.)
12 mm
- Manufacturer part #
3212934
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
PT 6-QUATTRO
- Dim
(L x W x H) 90.5 x 8.2 x 42.2 mm
- Width
8.2 mm
- Height
42.2 mm
- Length
90.5 mm
- Flammability rating
V0
- UKCA
yes
