Phoenix Contact 3213955 PTI 2,5-PE/L/NTB Grey
EAN:
Part number:
Item no:
Product type
PG terminal
Connection
Quick-connect
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
24 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.61
5
7% = € 0.30
€ 4.31
10
9% = € 0.42
€ 4.19
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.61 / piece)
€ 6.71
-31 %
€ 4.61
plus VAT.
14-day return policy included
Highlights & Details

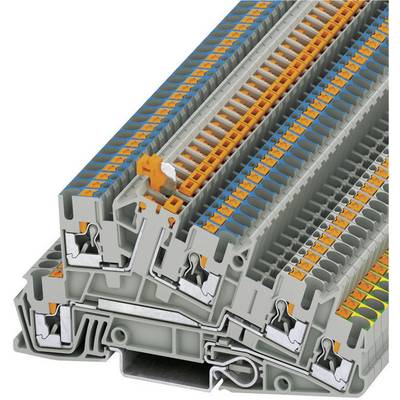

Phoenix Contact 3213955 PTI 2,5-PE/L/NTB Grey
- PTI 2,5-PE/L/NTB
Technical specifications
- Product type
PG terminal
- Connection
Quick-connect
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
26
- AWG max.
12
- Clamp width
5.2 mm
- No. of rows
3
- Number of pins
5
- Factory colour
Grey
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
400 V
- Min. stripping length
8 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
3213955
- Content
1 pc(s)
- Industrial packaging
No
- Type
PTI 2,5-PE/L/NTB
- Dim
(L x W x H) 101 x 5.2 x 50.5 mm
- Width
5.2 mm
- Height
50.5 mm
- Length
101 mm
- Weight
0.0196 kg
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 747008 Phoenix Contact 3213955 PTI 2,5-PE/L/NTB Grey
User & Safety Instructions
User & Safety Instructions 747008 Phoenix Contact 3213955 PTI 2,5-PE/L/NTB Grey
Information
Information 747008 Phoenix Contact 3213955 PTI 2,5-PE/L/NTB Grey
Description
Low insertion forces allow the light, direct insertion of rigid and flexible ladder even with low space requirements. Each clamping point can be clearly label and is clearly visible at each terminal installation position in the distribution boards. By double bridge bays, it is three-phase systems within a terminal strip. In addition, each clamping point a test option.
