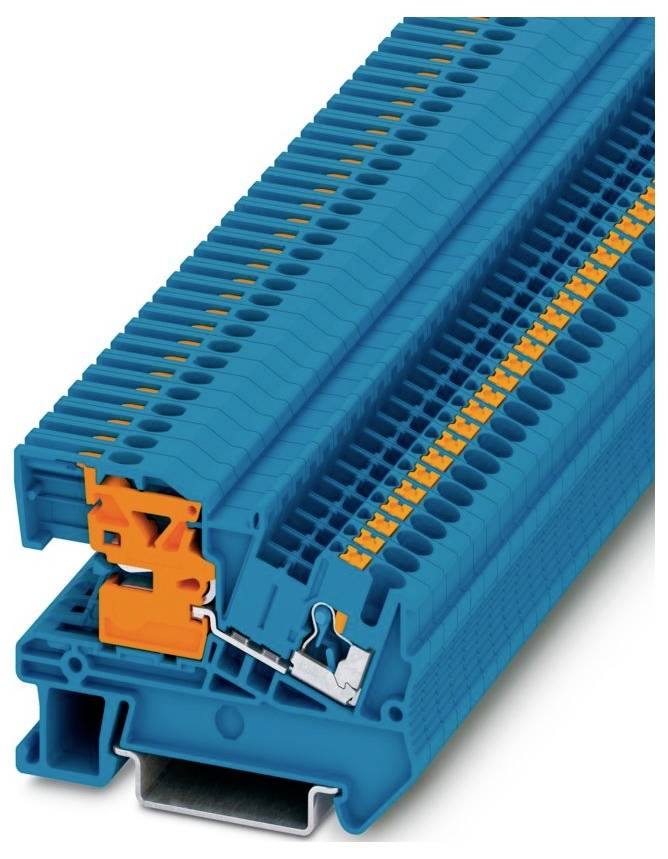

Phoenix Contact 3213963 N terminal Push-in connector Blue 50 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
N terminal
Connection
Push-in connector
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
Highlights & Details
- PTN 2,5
Technical specifications
- Packaging type
Piece
- Product type
N terminal
- Features
+ N disconnect slide
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
4 mm²
- Factory colour
Blue
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
250 V
- Manufacturer part #
3213963
- Content
50 pc(s)
- Type
PTN 2,5
- Dim
(W x H x D) 5.2 x 59 x 44.8 mm
- Width
5.2 mm
- Height
59 mm
- Flammability rating
V0
- Connector colour
Blue
- Depth
44.8 mm
- UKCA
yes
