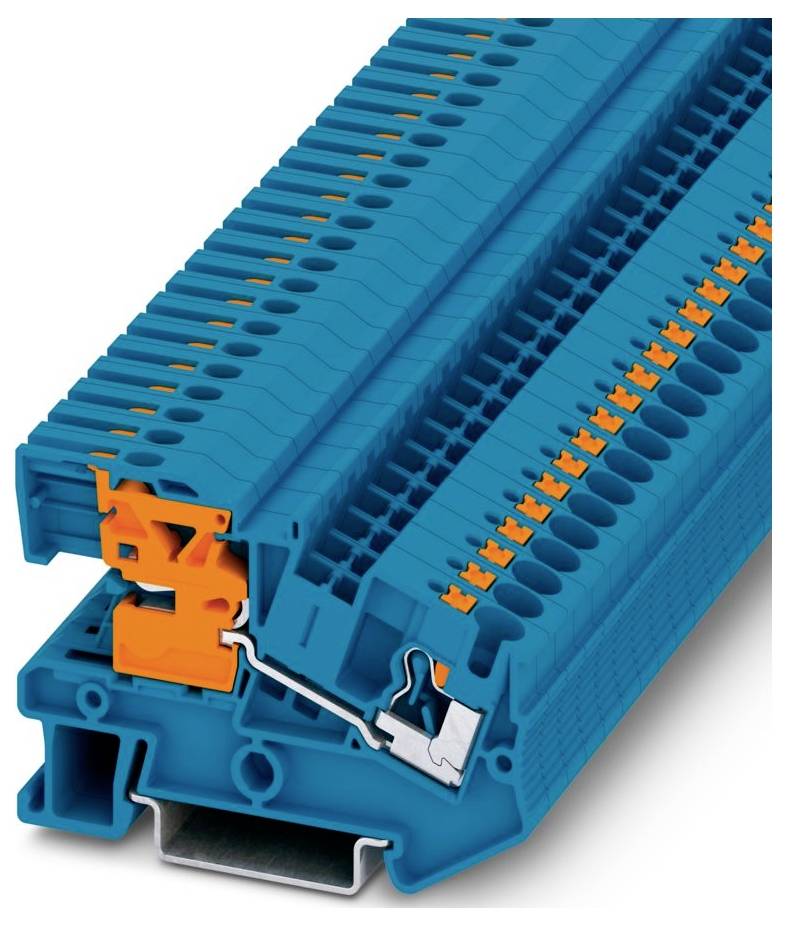

Phoenix Contact 3213965 N terminal Push-in connector Blue 50 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
N terminal
Connection
Push-in connector
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
N terminal
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
6 mm²
- Factory colour
Blue
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
250 V
- Manufacturer part #
3213965
- Content
50 pc(s)
- Type
PTN 4
- Dim
(W x H x D) 6.2 x 66 x 44.8 mm
- Width
6.2 mm
- Height
66 mm
- Flammability rating
V0
- Depth
44.8 mm
- UKCA
yes
