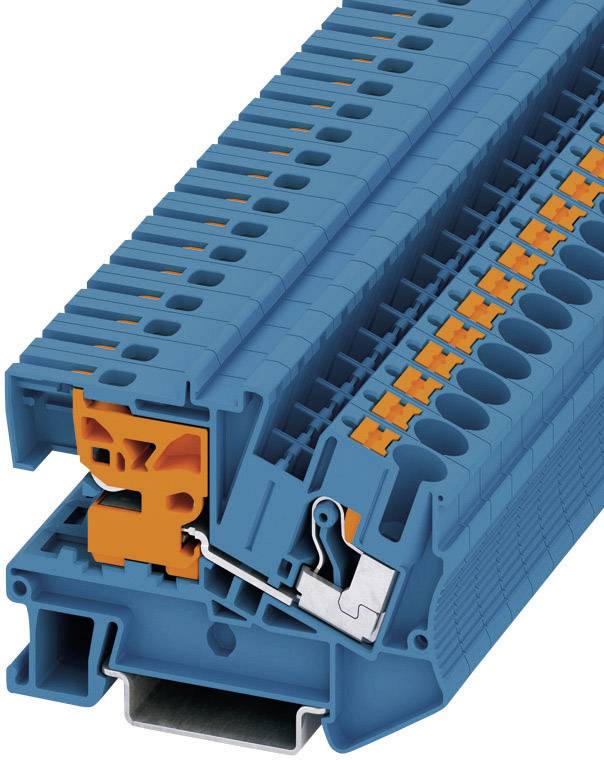

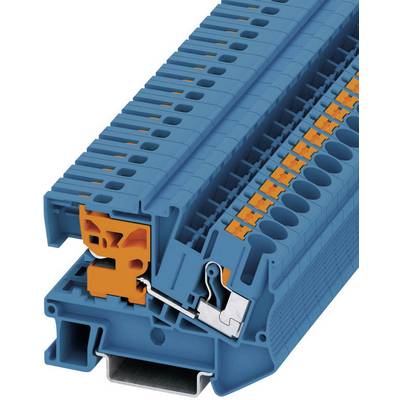

Phoenix Contact 3213967 N terminal 8.2 mm Quick-connect Blue 1 pc(s)
EAN:
Part number:
Item no:
Product type
N terminal
Connection
Quick-connect
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
10 mm²
Nominal current - rounded value
41 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.18
10
7% = € 0.23
€ 2.95
25
10% = € 0.33
€ 2.85
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.18 / piece)
€ 5.03
-37 %
€ 3.18
plus VAT.
14-day return policy included
Technical specifications
- Product type
N terminal
- Connection
Quick-connect
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
10 mm²
- AWG (min.)
20
- AWG max.
10
- Clamp width
8.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Blue
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Nominal voltage
400 V
- Stripping length (max.)
12 mm
- Manufacturer part #
3213967
- Content
1 pc(s)
- Industrial packaging
No
- Type
PTN 6
- Dim
(L x W x H) 66.3 x 8.2 x 48.5 mm
- Width
8.2 mm
- Height
48.5 mm
- Length
66.3 mm
- Flammability rating
V0
- UKCA
yes
