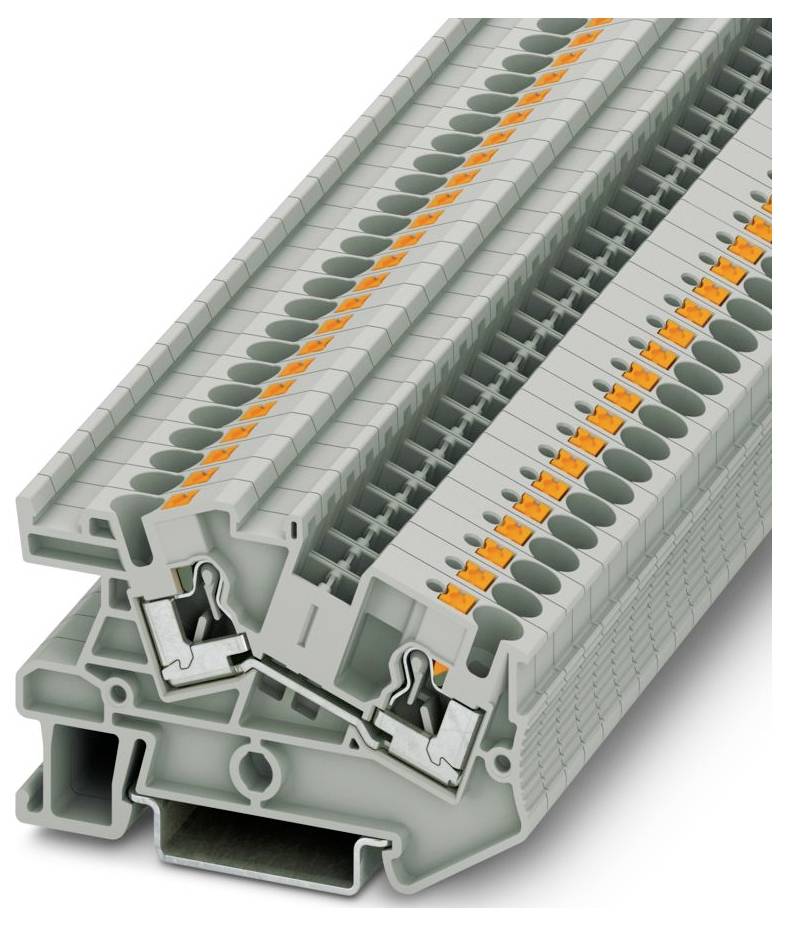

Phoenix Contact 3213970 Terminal Push-in connector Grey 50 pc(s)
EAN:
Part number:
Item no:
Product type
Terminal
Connection
Push-in connector
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
32 A
Datasheet (PDF)
Highlights & Details
- PTI 4
Technical specifications
- Product type
Terminal
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
6 mm²
- Factory colour
Grey
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
800 V
- Manufacturer part #
3213970
- Content
50 pc(s)
- Type
PTI 4
- Dim
(W x H x D) 6.15 x 65.91476 x 42.5 mm
- Width
6.15 mm
- Height
65.91476 mm
- Flammability rating
V0
- Depth
42.5 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3581525 Phoenix Contact 3213970 Terminal Push-in connector Grey 50 pc(s)
User & Safety Instructions
User & Safety Instructions 3581525 Phoenix Contact 3213970 Terminal Push-in connector Grey 50 pc(s)
